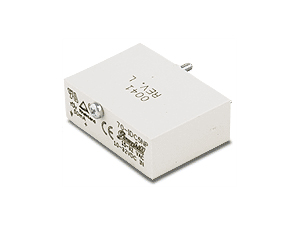

DC Sense SSR, 3-32 VDC Features:4000 Vrms isolation Low costSpecifications:# of inputs: 1 Input Voltage: 3 to 32 Input Current (max): 18 mA Input Resistance: 1.8 Kohm Turn-on Time: 0.2 mS Turn-off Time: 0.4 mS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

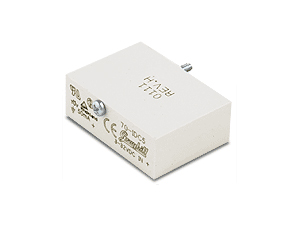

DC Sense SSR, 10-32 VDC Non-Polarized Digital Inputs Features:4000 Vrms isolation Low costSpecifications:# of inputs: 1 Input Voltage: 10 to 32VDC 15-32 VAC Rms Input Current (max): 25 mA Input Resistance: 1.8 Kohm Turn-on Time: 5 mS Turn-off Time: 5 mS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

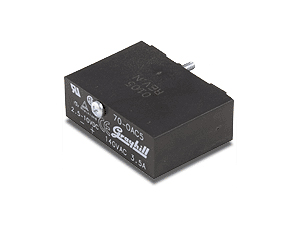

AC Switch SSR, 24-140 VAC, 3A @ 120 VAC Features:4000 Vrms isolation Low costSpecifications:# of inputs: 1 Load Voltage: 24 to 120 Load Current Max: 3.5 Amps Power Dissipation: 1W/Amp Blocknig Voltage: 400 VDC Turn On Time: 8.3mS Turn Off Time: 8.3mS Off Leakage Current: 2.5 mA Frequency Range: 25 Hz to 70 Hz Logic Supply Current: 16mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

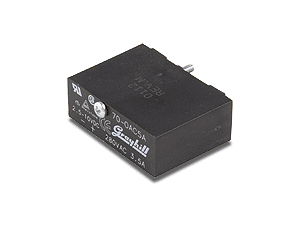

AC Switch SSR, 240 VAC Out Features:4000 Vrms isolation Low costSpecifications:# of inputs: 1 Load Voltage: 24 to 120 Load Current Max: 3.5 Amps Power Dissipation: 1W/Amp Blocknig Voltage: 400 VDC Turn On Time: 8.3mS Turn Off Time: 8.3mS Off Leakage Current: 2.5 mA Frequency Range: 25 Hz to 70 Hz Logic Supply Current: 16mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

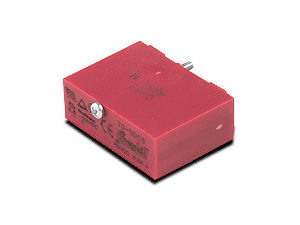

DC Switch SSR, 1-60 VDC @ 3A Features:4000 Vrms isolation Low costSpecifications:# of Outputs: 1 Load Voltage: 3 to 60 Load Current Max: 3.5 Amps Power Dissipation: 1W/Amp Blocking Voltage: 108 VDC Turn On Time: 20 uS Turn Off Time: 50 uS Off Leakage Current: 1.5 mA On Voltage Drop: 1.2VDC Logic Supply Current: 14mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

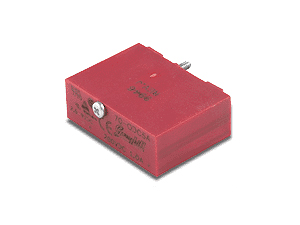

DC Switch SSR, 200 VDC @ 1A Features:4000 Vrms isolation Low costSpecifications:# of Outputs: 1 Load Voltage: 0 to 200 Load Current Max: 1 Amp Power Dissipation: 1.5 W/Amp Blocknig Voltage: 360 VDC Turn On Time: 75uS Turn Off Time: 750uS Off Leakage Current: 10 uA On Voltage Drop: 1.6VDC Logic Supply Current: 11mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

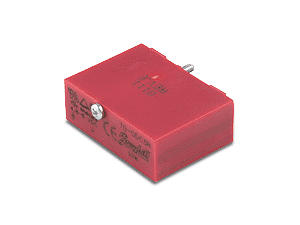

Reed Relay module for SSR-RACK24 Features:single reed relay output1500 Vrms isolation Low costSpecifications:# of relays: 1 Output Voltage: 100VDC or 120 VAC max Output Current (max):0.5 A Contact Resistance: 250 mohm Turn-on Time: 1.0 mS Turn-off Time: 1.0 mS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board

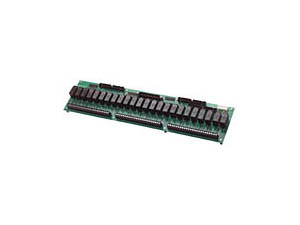

24 Form C, 10 A socketed relays, 37/50 pin, fault detecting Features:24 Form C relays Allows read back of relay output condition. Power-on reset All relays socketted and field replacableRelay Specifications:Relays: 24 SPDT, Form C Contact Material: Silver Cadmium Oxide Contact Rating: 10A at 28VDC, 10A at 120VAC Operate Time: 20 mSec. Release Time: 10 mSec. Power required: +5V, externally supplied or from PC with CPCPOWER-10 cable (included) Fault Detection Configuration The /FD board utilizes 48 bits of digital I/O from the DIO series controller board. 24-bit are configured as output and set the relay conditions, while the other 24-bits are configured as inputs and are used to monitor the relay coil status.Software:Supported by a wide variety of digital output and digital I/O boards. Each digital I/O board includes InstaCal, installation and test software and is supported by UniversalLibrary.Compatible Interface Boards:CIO-SERB24 is compatible with the CIO-DIO48/96/192, CIO-DIO48H and PCI-DIO48H through C50FF-# cables and the PCI-DIO96H with the C100FF-# series cable CIO-SERB24 is compatible with CIO-DIO24, -DIO24H and -DIO24/CTR3 using C37FF-# series cables
