Industrial Computers | Backplanes

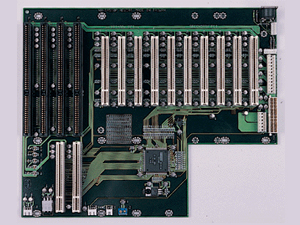

NB-14S10P
NEAT PCI to PCI Bridge 14 slots Active Backplane With 4 ISA(2 PICMG in-lined), 10 PCI Bus slots. Bus: PICMG standard Slots: 4 ISA Bus (2 PICMG in-lined) and 10 PCI Bus slots PCI to PCI bridge: DEC 21150, PCI 2.0 R 2.1 compliant KBD connectors: 2 external KBD and 1 internal PC/AT KBD connectors Power connector: One PS/2 type P8/P9, one ATX LED indicators: +/-5V, +/-12V and +3.3V PCB process: 4-layer PCB with ground and power planes for reducing noise and low power supply impedance Board size: 316mm x 259mm (12.4 x 10.2)
$155.00

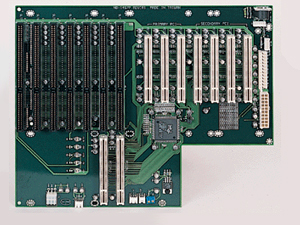

NB-14S7P
NB-14S7P NEAT PCI to PCI Bridge 14 slots Active Backplane 7 ISA (2 PICMG in-lined), 7 PCI Bus slots. Bus: PICMG standard Slots: 7 ISA (2 PICMG in-lined) and 7 PCIBus slots PCI to PCI bridge: DEC 21152, PCI 2.0 R2.1 compliant KBD connectors: 2 external KBD and 1 internal PC/AT KBD connectors Power connector: One PS/2 type P8/P9, one ATX LED indicators: +/-5V, +/-12V, and +3.3V PCB process: 4-layer PCB with ground and powerplanes for reducing noise and lowpower supply impedance Board size: 318mm x 259mm (12.5 x 10.2)
$164.00

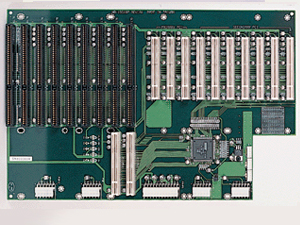

NB-19S10P
NEAT PCI to PCI Bridge 19 slots Active Backplane 9 ISA(2 PICMG in-lined), 10 PCI Bus slots. Bus: PICMG standard Slots: 9 ISA (2 PICMG in-lined) and 10 PCI Bus slots PCI to PCI bridge: DEC 21150, PCI 2.0 R2.1 compliant KBD connector: 3 external KBD connectors Power connector: One PS/2 type P8/P9, two P10 for extra 5Vand two P11 for extra +3.3V LED indicators: +/-5V, +/-12V and +3.3V PCB process: 4-layer PCB with ground and power planesfor reducing noise and low power supplyimpedance Board size: 395mm x 259mm (15.6 x 10.2)
$250.00

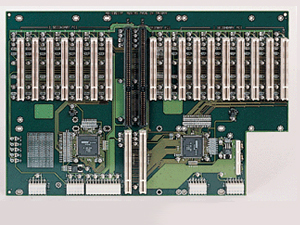

NB-19S17P
NEAT PCI to PCI Bridge 19 slots Active Backplane 2 PICMG, 17 PCI Bus slots. Bus: PICMG standard Slots: 2 PICMG Bus, 17 PCI Bus slots PCI to PCI bridge: DEC 21150 complies with PCI 2.0 R2.1 KBD connectors: 3 external KBD connectors Power connector: 1 PS/2 type P8/P9, 2 P10 for extra 5V and2 P11 for extra +3.3V LED indicators: +5V,+12V, +3.3V, -5V and -12V PCB process: 4-layer PCB with ground and power planes forreducing noise and low power supply impedance Board size: 395mm x 259mm (15.6 x 10.2 )
$266.00

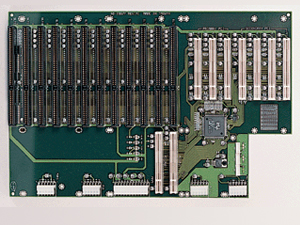

NB-19S7P
19-slot ISA/PCI Bus active backplane with PCI bridge. Bus: PICMG standard Slots: 12 ISA (2 PICMG in-lined) and 7 PCI Bus slots PCI to PCI bridge: DEC 21152, PCI 2.0 R2.1 compliant KBD connector: 3 external KBD connectors Power connector: One PS/2 type P8/P9, two P10 for extra5V and two P11 for extra +3.3V LED indicators: +/-5V, +/-12V and +3.3V PCB process: 4-layer PCB with ground and power planesfor reducing noise and low power supplyimpedance Board size: 395mm x 259mm (15.6 x 10.2)
$198.00

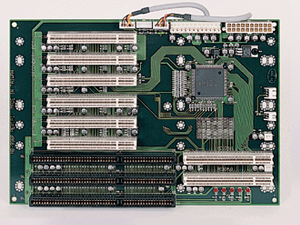

NB-9S6P
NB-9S6P NEAT PCI to PCI Bridge 9 slots Active Backplane 3 ISA(2 PICMG in-lined), 6 PCI Bus slots. Bus: PICMG standard Slots: 3 ISA Bus (2 PICMG in-lined)and 6 PCI Bus slots PCI to PCI bridge: DEC 21152, PCI 2.0 R2.1 compliant KBD connectors: 3 external KBD connectors Power connectors: One PS/2 type P8/P9, one ATX LED indicators: +5V, +12V, +3.3V, -5V and -12V PCB process: 4-layer with ground and powerplanes for reducing noise andlow power supply impedance Board size: 260mmx 180mm (10.2 x 7.1)
$128.00
