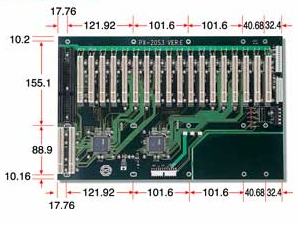

20-slots, 18PCI Expansion slots Backplane. PX-20S3-RS-R30: 20-slot PICMG bus active backplane with PCI bridge, AT/ATX power connectors RoHS compliant

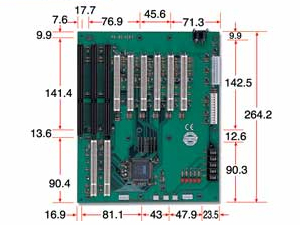

8-slots, 6PCI Expansion slots Backplane. PX-8S-RS-R30: 8-slot PICMG bus active backplane with PCI bridge, AT/ATX power connectors. RoHS compliant

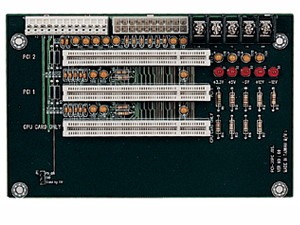

PCI Bus 3-slot AT/ATX Passive Backplane. Bus: PCI Bus (PICMG compliant) Slots: One PCI for CPU, two PCI for expansion Power connectors: One PS/2 P8/P9, one ATX power connectors ATX signal: 3-pin connector LED indicators: +/-5V, +/-12V, 3.3V Block terminal: +/-5V, +/-12V, 3.3V, GND Board size: 4-layer, 168mm x 107mm (6.6 x 4.2)

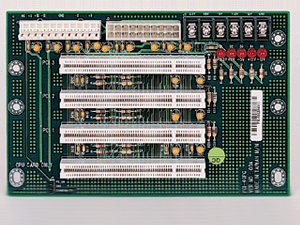

PCI Bus 4-slot Passive AT/ATX Backplane. Bus: PCI Bus (PICMG compliant) Slots: One PCI for CPU, three PCI for expansion Power connectors: One PS/2 P8/P9 and one ATX power connector ATX signal: 3-pin connector LED indicators: +/-5V, +/-12V, 3.3V Block terminal: +/-5V, +/-12V, 3.3V, GND Board size: 4-layer, 168mm x 110mm (6.6 x 4.3)

PCI and ISA Bus 6-slot AT/ATX Passive Backplane. Bus: PCI and ISA Bus (PICMG compliant) Slots: One PCI for CPU, two ISA and three PCI forexpansion, one PC/104 to ISA converting slotvia ISA-104B MagicBus converter Power connectors: One PS/2 P8/P9, one ATX power connectors ATX signal: 3-pin connector LED indicators: +/-5V, +/-12V, 3.3V Block terminal: +/-5V, +/-12V, 3.3V, GND Board size: 4-layer, 176mm x 170mm (6.9" x 6.7")

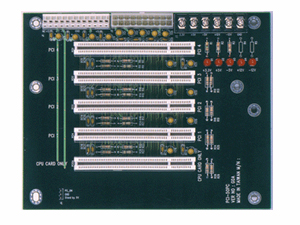

PCI Bus 5-slot Passive Backplane with AT/ATX power connectors. Bus: PCI Bus (PICMG compliant) Slots: One PCI for CPU, four PCI for expansion Power connectors: One PS/2 P8/P9, one ATX power connectors ATX signal: 3-pin connector LED indicators: +/-5V, +/-12V, 3.3V Block terminal: +/-5V, +/-12V, 3.3V, GND Board size: 4-layer, 176mm x 140mm (6.9 x 5.5)

ISA Bus 10-slot Passive Backplane. BP-10S-RS-R30:10-slot ISA bus passive backplane with AT power connector, RoHS Complaint

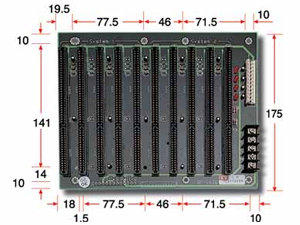

ISA Bus 5+5-slot dual Segmented Passive Backplane.
