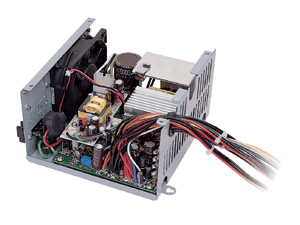

150W ATX Power Supply full Range with PFC function Input Range90V AC~264V AC full range (ACE-816AP/ACE-916AP)95V AC~132V AC, 180V AC~264V AC manual switch (ACE-816A/ACE-916A)ACE-816/916 Output RatingPIN1:+3.3V!O5%, Noise:50mvPIN2:+5V!O5%, Noise:50mvPIN3:+12V!O5%, Noise:120mvPIN4:-12V!O10%, Noise:120mvPIN5:+5Vsb!O5%, Noise:100mv[ACE-916A]Min:+5V 1.0A,+12V 0.2A,-12V 0AMax:+5V 15A,+12V 10A,-12V 0.3AThe output of +5V and +12V total output shall not exceed 146.4W, Total output maximum 150W[ACE-816A]Min:+3.3V 0.2A,+5V 1.0A,+12V 0.2A,-12V 0A,+5Vsb 0AMax:+3.3V 16A,+5V 15A,+12V 12A,-12V 0.3A,+5Vsb 2AThe output of +3.3V and +5V total output shall not exceed 61.5W, The +3.3V and +5V, +12V total output shall not exceed 136.4W, Total output maximum 150W[ACE-916AP]Min:+5V 1.0A,+12V 0.5A,-12V 0AMax:+5V 16A,+12V 6A,-12V 0.3AThe output of +12V and +5V total output shall not exceed 145W, Total output maximum 150W[ACE816AP]Min:+3.3V 0.3A,+5V 1.0A,+12V 0.3A,-12V 0A,+5Vsb 0AMax:+3.3V 10A,+5V 14A,+12V 4.2A,-12V 0.3A,+5Vsb 2AThe output of +3.3V and +5V total output shall not exceed 85W, Total output maximum 150WACE-815T Output RatingPIN1:+3.3V!O5%, Noise:50mv, Min:0.0A, Max:10.0APIN2:+5V!O5%, Noise:50mv, Min:0.0A, Max:14.0APIN3:+12V!O5%, Noise:120mv, Min:0.0A, Max:4.2APIN4:-5V!O5%, Noise:100mv, Min:0.0A, Max:0.3APIN5:-12V!O10%, Noise:120mv, Min:0.0A, Max:0.3APIN6:+5Vsb!O5%, Noise:100mv, Min:0.0A, Max:2.0A(+5V, +3.3V and +12V total output not exceed 135W)ACE-815C Output RatingPIN1:+3.3V!O5%, Noise:50mv, Min:0.0A, Max:4.0APIN2:+5V!O5%, Noise:50mv, Min:0.0A, Max:13.0APIN3:+12V!O5%, Noise:120mv, Min:0.0A, Max:2.5APIN5:-12V!O10%, Noise:120mv, Min:0.0A, Max:0.3APIN6:+5Vsb!O5%, Noise:100mv, Min:0.0A, Max:2.0A(+5V, +3.3V and +12V total output not exceed 84W)Hold-up time :17ms min. (AC Input Power Supply only)Efficiency :68% typ. (ACE-816AP/916AP); 72% typ. (ACE-816A/916A)Protection :Over Voltage/Load Protection and Short Circuit ProtectionTTL signal compatible power good signalVibration :10-55Hz at 2G 3min. period, 30 min. along X, Y and Z axis.Shock :10G for 11ms once on each X, Y and Z axis.Built-in cooling fanPower Connector:ATX (ACE-816A/AP/815T/815C) ; P8/P9 (ACE-916A/AP)MTBF :100,000hrs at 25ºCSafety :Meets UL 1950, CSA 22.2 Level 3,TUV, CCC.EMI :Meets FCC class "B",EN55022 class "B" Meets Harmonic EN61000-3-2 (ACE-815AP, ACE-915AP)EMS Standard :meet- IEC 801-2 8KV(Air Discharge)- IEC 801-3 3V/M criteria A- IEC 801-4,2KV criteria B- IEC 801-5,2KV criteria BOperating Temp. : 0-50ºC

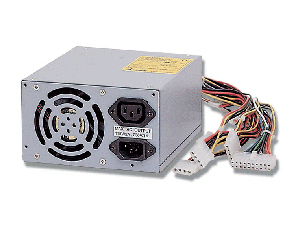

AC input 280W industrial ATX power supply Input Table:*ACE-828A/830AP:90~130V or 180~260V AC, 47~63HZ(Auto)*ACE-828C:18~32V DC, 5A@24V DC*ACE-828T:-40~-72V DC, 10A@-48V DC*ACE-828V:9~16V DC, 50A@12V DCOutput Table:(at 40ºC) #:rated load,##:max output[ACE-830AP]#: 5V:30A, 12V:6A, -12V:0.5A, 3.3V:10A, 5Vsb:1A##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828A]#: 5V:25A, 12V:10A, -12V:0.5A, -5V:0.5A, 3.3V:8A, 5Vsb:0.72V##:5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828C]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828T]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828V]#: 5V:25A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:22A, 5Vsb:0.72ARipple and Noise :Less than 50mV@+5V and +3.3V; 100mV@OthersLine Regulation :The line regulation for each outputs are less than !O1%Load Regulation:*ACE-830AP5V*ACE-828A5V*ACE-828C5V*ACE-828T5V*ACE-828V5VOutput Power :Total combined output power on the +3.3V and +5V rails is 150WEfficiency :Higher than 65%Hold-up Time (ACE-828A/830AP) :20ms (typical)@115V ACAltitude :0 ~ 10,000ftProtection :- Over voltage protection : The trip point is around5.7V ~ 7.0V output- Short circuit protectionVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisBuilt-in cooling fanMTBF :- ACE-828A : 101,379 Hours- ACE-828C : 121,233 Hours- ACE-828T : 112,112 Hours- ACE-828V : 95,620 HoursSafety :Meets UL 1950; CSA 22.2 No. 234, VDE EN 60950EMI :- Meets FCC class "B", EN55022 class "B"- Harmonic EN 61000-3-2 for ACE-830APOperating Temperature :-20º ~ 70ºC(Derating curve will occur 40º~ 70ºC)Storage Temperature :-40º ~ 75ºC

+24V DC input industrial ATX power supply Input Table:*ACE-828A/830AP:90~130V or 180~260V AC, 47~63HZ(Auto)*ACE-828C:18~32V DC, 5A@24V DC*ACE-828T:-40~-72V DC, 10A@-48V DC*ACE-828V:9~16V DC, 50A@12V DCOutput Table:(at 40ºC) #:rated load,##:max output[ACE-830AP]#: 5V:30A, 12V:6A, -12V:0.5A, 3.3V:10A, 5Vsb:1A##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828A]#: 5V:25A, 12V:10A, -12V:0.5A, -5V:0.5A, 3.3V:8A, 5Vsb:0.72V##:5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828C]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828T]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828V]#: 5V:25A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:22A, 5Vsb:0.72ARipple and Noise :Less than 50mV@+5V and +3.3V; 100mV@OthersLine Regulation :The line regulation for each outputs are less than !O1%Load Regulation:*ACE-830AP5V*ACE-828A5V*ACE-828C5V*ACE-828T5V*ACE-828V5VOutput Power :Total combined output power on the +3.3V and +5V rails is 150WEfficiency :Higher than 65%Hold-up Time (ACE-828A/830AP) :20ms (typical)@115V ACAltitude :0 ~ 10,000ftProtection :- Over voltage protection : The trip point is around5.7V ~ 7.0V output- Short circuit protectionVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisBuilt-in cooling fanMTBF :- ACE-828A : 101,379 Hours- ACE-828C : 121,233 Hours- ACE-828T : 112,112 Hours- ACE-828V : 95,620 HoursSafety :Meets UL 1950; CSA 22.2 No. 234, VDE EN 60950EMI :- Meets FCC class "B", EN55022 class "B"- Harmonic EN 61000-3-2 for ACE-830APOperating Temperature :-20º ~ 70ºC(Derating curve will occur 40º~ 70ºC)Storage Temperature :-40º ~ 75ºC

300W ATX Power Supply Medical Power Supply Input Voltage :ACE-828M: 90~130V AC or 180~260V AC(Auto Switch)ACE-925M: 90~264VAC (Full-Range)Output Table : (at 40ºC)*ACE-828M:Rated:+5V30A, +12V15A, -12V0.5A, -5V0.5A, +3.3V8A, +5Vsb0.72A*ACE-925MRated:+5V28A, +12V10A, -12V1A, -5V1A,+3.3VLoad Regulation:*ACE-828M:+5V,+12V*ACE-925M+5VLeakage Current :Primary to safety ground less than 500uA at 253V AC input, secondary ground to safety ground less than 100uA at 235V AC inputRipple and Noise :- ACE-828M : Less than 50mV@+5V and +3.3V; 100mV@Others- ACE-925M : The line regulation for each outputs are less than +/-1%Line Regulation :- ACE-925M : Less than !O1% for each output- ACE-828M : Less than !O2%@+12V, +/-1%@OthersEfficiency :Higher than 65%Altitude :0 ~ 10,000ftOver voltage protectionVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisBuilt-in cooling fanMTBF :- ACE-828M : 177,287 Hours- ACE-925M : 132,648 HoursSafety :Meets UL 544, UL 2601, CSA 22.2 No.601, TUV (DIN. VDE 075T.1/12.91/EN 60 601-1:1990)EMI :Meets EN55011 class "B"EMS Standard (Designed to meet the following limits) :- IEC 801-2 4KV contact, 8KV Air Discharge- IEC 801-3, 3V/M, 26MHz to 1GHz- IEC 801-4, 2KV power mains- IEC 801-5, 2KV criteria BOperating Temperature :ACE-828M : -20ºC ~ 70ºC(Derating curve will occur 40ºC ~70ºC)ACCE-925M 0ºC ~ 70ºC(Derating curve will occur 40ºC ~ 70ºC)Storage Temperature :-40ºC ~ 75ºC

-48V DC input industrial ATX power supply Input Table:*ACE-828A/830AP:90~130V or 180~260V AC, 47~63HZ(Auto)*ACE-828C:18~32V DC, 5A@24V DC*ACE-828T:-40~-72V DC, 10A@-48V DC*ACE-828V:9~16V DC, 50A@12V DCOutput Table:(at 40ºC) #:rated load,##:max output[ACE-830AP]#: 5V:30A, 12V:6A, -12V:0.5A, 3.3V:10A, 5Vsb:1A##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828A]#: 5V:25A, 12V:10A, -12V:0.5A, -5V:0.5A, 3.3V:8A, 5Vsb:0.72V##:5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828C]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828T]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828V]#: 5V:25A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:22A, 5Vsb:0.72ARipple and Noise :Less than 50mV@+5V and +3.3V; 100mV@OthersLine Regulation :The line regulation for each outputs are less than !O1%Load Regulation:*ACE-830AP5V*ACE-828A5V*ACE-828C5V*ACE-828T5V*ACE-828V5VOutput Power :Total combined output power on the +3.3V and +5V rails is 150WEfficiency :Higher than 65%Hold-up Time (ACE-828A/830AP) :20ms (typical)@115V ACAltitude :0 ~ 10,000ftProtection :- Over voltage protection : The trip point is around5.7V ~ 7.0V output- Short circuit protectionVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisBuilt-in cooling fanMTBF :- ACE-828A : 101,379 Hours- ACE-828C : 121,233 Hours- ACE-828T : 112,112 Hours- ACE-828V : 95,620 HoursSafety :Meets UL 1950; CSA 22.2 No. 234, VDE EN 60950EMI :- Meets FCC class "B", EN55022 class "B"- Harmonic EN 61000-3-2 for ACE-830APOperating Temperature :-20º ~ 70ºC(Derating curve will occur 40º~ 70ºC)Storage Temperature :-40º ~ 75ºC

AC input PFC 300W industrial ATX power supply Input Table:*ACE-828A/830AP:90~130V or 180~260V AC, 47~63HZ(Auto)*ACE-828C:18~32V DC, 5A@24V DC*ACE-828T:-40~-72V DC, 10A@-48V DC*ACE-828V:9~16V DC, 50A@12V DCOutput Table:(at 40ºC) #:rated load,##:max output[ACE-830AP]#: 5V:30A, 12V:6A, -12V:0.5A, 3.3V:10A, 5Vsb:1A##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828A]#: 5V:25A, 12V:10A, -12V:0.5A, -5V:0.5A, 3.3V:8A, 5Vsb:0.72V##:5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828C]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:35A, 12V:10A, -12V:1A, -5V:1A, 3.3V:20A, 5Vsb:1.5A[ACE-828T]#: 5V:25A, 12V:7A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:15A, -12V:2A, -5V:1A, 3.3V:15A, 5Vsb:1.2A[ACE-828V]#: 5V:25A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:10A, 5Vsb:0.72V##: 5V:30A, 12V:8A, -12V:1A, -5V:0.5A, 3.3V:22A, 5Vsb:0.72ARipple and Noise :Less than 50mV@+5V and +3.3V; 100mV@OthersLine Regulation :The line regulation for each outputs are less than !O1%Load Regulation:*ACE-830AP5V*ACE-828A5V*ACE-828C5V*ACE-828T5V*ACE-828V5VOutput Power :Total combined output power on the +3.3V and +5V rails is 150WEfficiency :Higher than 65%Hold-up Time (ACE-828A/830AP) :20ms (typical)@115V ACAltitude :0 ~ 10,000ftProtection :- Over voltage protection : The trip point is around5.7V ~ 7.0V output- Short circuit protectionVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisBuilt-in cooling fanMTBF :- ACE-828A : 101,379 Hours- ACE-828C : 121,233 Hours- ACE-828T : 112,112 Hours- ACE-828V : 95,620 HoursSafety :Meets UL 1950; CSA 22.2 No. 234, VDE EN 60950EMI :- Meets FCC class "B", EN55022 class "B"- Harmonic EN 61000-3-2 for ACE-830APOperating Temperature :-20º ~ 70ºC(Derating curve will occur 40º~ 70ºC)Storage Temperature :-40º ~ 75ºC

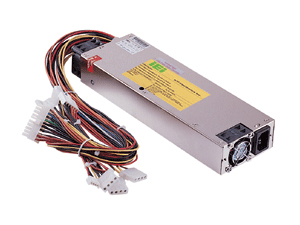

300W ATX Power Supply Input :*ACE-830APU1/ACE-840APU290V ~ 264VAC Full range*ACE-830CU1:Input Range:+18V~36V DCInput Current:30A@+24V DC*ACE-830TU1:Input Range:-36V~-72V DCInput Current:15A@-48V DC*ACE-830VU1:Input Range:+10V~18V DCInput Current:30A@+12V DCOutput Rating*ACE-830APU1PIN1:+3.3V(!O5%),Noise:50mv,Min 0,Max:20A,Peak:25APIN2:+5V(+5/-4%),Noise:50mv,Min 0.5A,Max:20A,Peak:40APIN3:+12V(!O5%),Noise:120mv,Min 0.5A,Max:16A,Peak:20APIN4:-5V(!O5%),Noise:50mv,Min 0A,Max:0.5APIN5:-12V(+8/-5%),Noise:120mv,Min 0A,Max:1APIN6:5Vsb(!O5%),Noise:50mv,Min 0A,Max:2AThe output of +3.3V and +5V shall not exceed 140W.Total output maximum 300W.Hold-up time :20ms min.Efficiency :70% typ.Protection :Over Voltage/Load Protection and short circuit protection .TTL signal compatible power good signal .Vibration :10-55Hz at 2G 3min. period , 30min. along X ,Y and Z axis .Shock :10G for 11ms once on each X,Y and Z axis.Built-in cooling fan .M.T.B.F. :Minimum 100000 hours at 25oCSafety :UL 1950 , CSA 22.2-234,level 3 , TUV ,CE, CCCEMI :FCC parts 15 class "B" , CISPR 22 level "B" Active PFC, complies with EN 61000-3-2EMS :EN 50082-1 immunity standard, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11Operating temp :0~50ºC, 0~70ºC

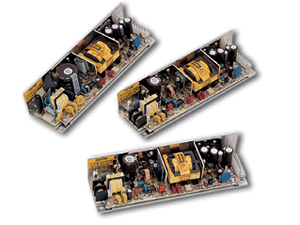

AC/DC Input LCD Panel PC 55W Power Supply Input Table:*ACE-855AInput Volage: 85V~264V AC,47-63HZInput Current: 2A@115V AC OR 1A@230V AC*ACE-855CInput Volage:16V~32V DCInput Current:9A@+16V DC*ACE-845VInput Volage: 9.5V~18V DCInput Current:10A@+9.5V DCInrush Current (ACE-855A) :Not exceed 115V@30A AC or 230V AC@60ARipple and Noise :Less than 1% of output voltageLine Regulation :The line regulation for each outputs are less than +/-1%, while measuring at rated loading and +/-10% of input voltage changingLoad Regulation :Less than +/-3%@+5V, +/-5%@+12VEfficiency :Higher than 70%Hold-up Time (ACE-855A) :16ms (typical)@115V ACAltitude :0 ~ 10,000ftProtection :Over voltage protection. The trip point is around 5.7V ~ 7.0V outputVibration :10 ~ 55Hz at 2G 3min. period, 30 min. along X, Y and Z axisImpact :10G for 20ms once on each X, Y and Z axisMTBF :- ACE-855A : 335,874 Hours- ACE-855C : 327,482 Hours- ACE-845V : 339,662 HoursSafety :Meets UL 1950; CSA 22.2 No. 234, VDE EN 60950EMI :Meets FCC docket 20780 curve "B",EN50081-2 :CISPR curve "B"EMS Standard (Designed to meet the following limits) :- EN 50082-2- IEC 801-2 8KV (Air Discharge) criteria B- IEC 801-3, 10V/M criteria B- IEC 801-4, 2KV criteria B- IEC 801-5, 2KV criteria BOperating Temperature :-20ºC ~ 70ºC(Derating curve will occur 50ºC ~ 70ºC)Storage Temperature :-20ºC ~ 85ºCDimensions :50.5(W) x 37(H) x 177.5(D)mm; (2" x 1.5" x 7")
