Industrial Computers | PC Power supplies
ACE-4518AP-RS
ACE-4518AP-RS (Discontinued, see ACE-A618A-RS) High power capacity 250W in 1U size Two sets independent +12V output ATX 2.0 standard w/ new 20+4 ATX power connector design Full functional over voltage / current protection ACE-4518AP-RS: 180W AC-DC 1U ATX Power Supply, with PFC Input Voltage 90 ~ 265VAC Full Range Rated load +3.3V +5V +12V -12V +5Vsb 0.3A 0.3A 1.5A 0A 0A Peak load +3.3V +5V +12V -12V -5Vsb 16.8A 12A 10A 0.8A 2A Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs
$101.00
ACE-830CU1-RS EOL Not available
ACE-830CU1-RS Multiple safety / EMC certificated Full functional over voltage / current protection Low Ripple and Noise ACE-830CU1-RS: 300W 24V DC input 1U ATX Power Supply Input Voltage 19 ~ 36VDC Rated load +3.3V +5V +12V -5V -12V +5Vsb 0A 3A 1A 0A 0A 0A Peak load +3.3V +5V +12V -5V -12V +5Vsb 20A 25A 22A 0.8A 1A 1.5A Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs
$302.00
ACE-717CXRS
ACE-717CXRS DC input with ATX function support Full functional over voltage / current protection Multiple safety / EMC certificated .ACE-717CX-RS: 170W 24V DC input ATX Power Supply Input Voltage 19 ~ 32VDC Rated load +3.3V +5V +12V -12V +5Vsb 0A 1A 1A 0A 0A Peak load +3.3V +5V +12V -12V +5Vsb 6A 8A 8A 0.5A 1A Operating Temperature: 20 ~ 70˚C (Operating) MTBF: 100,000 hrs
$254.00
ACE-715VXRS
ACE-715VXRS Multiple safety / EMC certificated ACE-715VX-RS: 100W 24V DC input 1U ATX Power Supply Input Voltage 9 ~ 18VDC Rated load +3.3V +5V +12V -12V +5Vsb 0A 1A 1A 0A 0A Peak load +3.3V +5V +12V -12V +5Vsb 6A 8A 7A 0.5A 1A Operating Temperature: 0 ~ 70˚C (Operating) MTBF: 100,000 hrs
$218.00
ACE-663ARS
ACE-663ARS With power good LED With output adjustable trimmer The terminal block with cover is optional ACE-663A-RS: 60W AC-DC AT Power Supply Input Voltage 90 ~ 264VAC Full Range Rated load +5V +12V 0A 0A Peak load +5V +12V 6A 2A Operating Temperature: -20 ~ 70˚C (Operating) MTBF: 100,000 hrs
$67.00
ACE-643ARS
ACE-643ARS With power good LED With output adjustable trimmer The terminal block with cover is optional ACE-663A-RS: 60W AC-DC AT Power Supply Input Voltage 90 ~ 264VAC Full Range Rated load +5V +12V 0A 0A Peak load +5V +12V 4A 1.5A Operating Temperature: -20 ~ 70˚C (Operating) MTBF: 100,000 hrs
$54.00

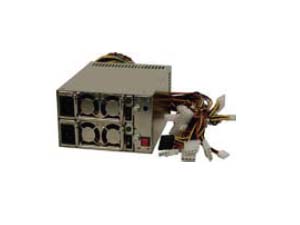

ACE-R4130AP
ACE-R4130AP Multiple safety / EMC certificated Full functional over voltage / current protection ATX2.0 standard w/ new 20+4pin ATX power and SATA connector design ACE-R4130AP-RS: 300W AC-DC ATX Mini Redundant Power Supply with PFC, includes two ACE-R4130AP1-RS module Input Voltage 85 ~ 264VAC Full Range Rated load +3.3V +5V +12V -5V -12V +5Vsb 1A 3A 2A 0A 0A 0.1A Peak load +3.3V +5V +12V -5V -12V +5Vsb 18A 25A 26A 0.5A 0.5A 2A Operating Temperature: 0 ~ 40˚C (Operating) MTBF: 160,000 hrs
$668.00
ACE-R4130AP1-RS
ACE-R4130AP1-RS Multiple safety / EMC certificated Full functional over voltage / current protection ATX2.0 standard w/ new 20+4pin ATX power and SATA connector design ACE-R4130AP1-RS: 300W AC-DC ATX Redundant power module, for ACE-R4130AP-RS Input Voltage 85 ~ 264VAC Full Range Rated load +3.3V +5V +12V -5V -12V +5Vsb 1A 3A 2A 0A 0A 0.1A Peak load +3.3V +5V +12V -5V -12V +5Vsb 18A 25A 26A 0.5A 0.5A 2A Operating Temperature: 0 ~ 40˚C (Operating) MTBF: 160,000 hrs
$331.00
