PC Based Instruments | Oscilloscope

HS805

HS805

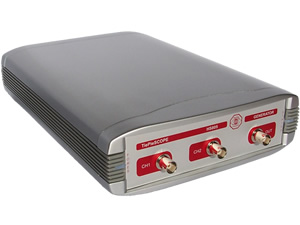

TiePieSCOPE HS805 The TiePieSCOPE HS805 is a portable USB oscilloscope that combines a high sampling speed (1 GSamples/s on one channel, 500 MSamples/sec on two channels) with a long record of 32 MiSamples per channel. That allows you to capture long, complex signal patterns at full speed. The 250 MHz high bandwidth ensures that the signals are measured accurately and without distortion. An Arbitrary Waveform Generator (AWG) is also available. It allows to generate several standard predefined signals like sine wave, square wave etc. with frequencies up to 20 MHz. It also allows to generate complex user defined signals or to regenerate previously measured signals. The AWG has a 32 MiSamples waveform buffer and a maximum sampling frequency of 200 MHz. Both an analog and a digital (TTL) external trigger input are located at the rear of the instrument. The analog external trigger input features the same input ranges as the normal input channels. The TiePieSCOPE HS805 comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the TiePieSCOPE HS805 can be operated as: storage oscilloscope spectrum analyzer voltmeter transient recorder function generator The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. It also allows to perform mathematical operations on the measured data, like adding, subtracting, multiplying, integrating, differentiating, filtering etc. This can be as simple as adding two signals together and display the result in a graph, or it can be very complex. Complex mathematical operations can be performed by combining several mathematical operations. Measured data can be printed and saved to disk in various common data formats.

$3618.00

HP3-5

HP3-5

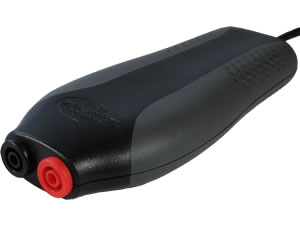

Handyprobe HP3 PC based 100 MS/s differential USB oscilloscope. The TiePie engineering Handyprobe HP3 is the world's first PC based 100 MS/s differential USB oscilloscope. The Handyprobe HP3 is equipped with a differential input with a maximum input range of 800 Volt DC (566 Volt RMS). Because of the differential input, it is not possible to create a short circuit to ground through the oscilloscope. The high input range makes it possible to use the Handyprobe HP3 without additional attenuators. See the classroom section for information about differential measuring. The advanced driver technology makes it possible to measure a continuous stream of data from the Handyprobe HP3 to the computer, at a maximum rate of 10 MSamples/s. The maximum measuring time is only limited by the available space on the hard drive. The high sampling rate makes it possible to capture short events with high accuracy. It is also possible to monitor e.g. the line power for a very long time and afterwards view and analyze each cycle of the signal thoroughly. The input of the Handyprobe HP3 is differential, which means that both sides of the input have a high impedance. There is no connection to ground as in conventional oscilloscopes which are used with coax cables and standard probes. The special low noise Measure lead TP-C812A is developed for the Handyprobe HP3. It is very insensitive to external interfering signals. The two ends can be placed up to two meters apart, while picking up very little interference. With a conventional oscilloscope with standard probes this is not possible. The maximum distance between the positive side and ground of a standard probe is usually limited to approximately 20 cm. The Measure lead TP-C812A for the Handyprobe HP3 does not have this limitation. Measuring between two distant points is now no problem anymore. The Measure lead TP-C812A uses a heat resistant silicone isolation and shrouded banana plugs. The Handyprobe HP3 is designed to fit nicely in your hand. Its housing is fitted with soft rubber areas that ensure a good grip on it. A wrist strap can be attached, to carry the Handyprobe HP3 or to hang it near the test setup. Fast and compact measuring instrument with a wide input range from 200 mV full scale to 800 V full scale without the need for additional probes or attenuators. High bandwidth of 50 MHz to be able to analyze fast signals accurately. No short circuit to ground possible, due to the differential input. This means extra protection for your PC. The two measuring points can be far apart, making it easy to measure in large installations. Fast streaming, up to 10 million samples per second continuously for fast and long measurements. Amplitude accuracy of 0.3% full scale. Most oscilloscopes have an accuracy of 2 - 3 %. No external power supply required. Power is gotten from a USB port. Very versatile Multi Channel software with an oscilloscope, spectrum analyzer, Y-t recorder and voltmeter with many signal analysis functions. Exporting of measured data to various common data formats, making it possible to create your own reports. The Handyprobe HP3 comes in a solid case, including test pins and crocodile clamps.

$206.00

HP3-20

HP3-20

Handyprobe HP3 PC based 100 MS/s differential USB oscilloscope. The TiePie engineering Handyprobe HP3 is the world's first PC based 100 MS/s differential USB oscilloscope. The Handyprobe HP3 is equipped with a differential input with a maximum input range of 800 Volt DC (566 Volt RMS). Because of the differential input, it is not possible to create a short circuit to ground through the oscilloscope. The high input range makes it possible to use the Handyprobe HP3 without additional attenuators. See the classroom section for information about differential measuring. The advanced driver technology makes it possible to measure a continuous stream of data from the Handyprobe HP3 to the computer, at a maximum rate of 10 MSamples/s. The maximum measuring time is only limited by the available space on the hard drive. The high sampling rate makes it possible to capture short events with high accuracy. It is also possible to monitor e.g. the line power for a very long time and afterwards view and analyze each cycle of the signal thoroughly. The input of the Handyprobe HP3 is differential, which means that both sides of the input have a high impedance. There is no connection to ground as in conventional oscilloscopes which are used with coax cables and standard probes. The special low noise Measure lead TP-C812A is developed for the Handyprobe HP3. It is very insensitive to external interfering signals. The two ends can be placed up to two meters apart, while picking up very little interference. With a conventional oscilloscope with standard probes this is not possible. The maximum distance between the positive side and ground of a standard probe is usually limited to approximately 20 cm. The Measure lead TP-C812A for the Handyprobe HP3 does not have this limitation. Measuring between two distant points is now no problem anymore. The Measure lead TP-C812A uses a heat resistant silicone isolation and shrouded banana plugs. The Handyprobe HP3 is designed to fit nicely in your hand. Its housing is fitted with soft rubber areas that ensure a good grip on it. A wrist strap can be attached, to carry the Handyprobe HP3 or to hang it near the test setup. Fast and compact measuring instrument with a wide input range from 200 mV full scale to 800 V full scale without the need for additional probes or attenuators. High bandwidth of 50 MHz to be able to analyze fast signals accurately. No short circuit to ground possible, due to the differential input. This means extra protection for your PC. The two measuring points can be far apart, making it easy to measure in large installations. Fast streaming, up to 10 million samples per second continuously for fast and long measurements. Amplitude accuracy of 0.3% full scale. Most oscilloscopes have an accuracy of 2 - 3 %. No external power supply required. Power is gotten from a USB port. Very versatile Multi Channel software with an oscilloscope, spectrum analyzer, Y-t recorder and voltmeter with many signal analysis functions. Exporting of measured data to various common data formats, making it possible to create your own reports. The Handyprobe HP3 comes in a solid case, including test pins and crocodile clamps.

$302.00

HP3-100

HP3-100

Handyprobe HP3 PC based 100 MS/s differential USB oscilloscope. The TiePie engineering Handyprobe HP3 is the world's first PC based 100 MS/s differential USB oscilloscope. The Handyprobe HP3 is equipped with a differential input with a maximum input range of 800 Volt DC (566 Volt RMS). Because of the differential input, it is not possible to create a short circuit to ground through the oscilloscope. The high input range makes it possible to use the Handyprobe HP3 without additional attenuators. See the classroom section for information about differential measuring. The advanced driver technology makes it possible to measure a continuous stream of data from the Handyprobe HP3 to the computer, at a maximum rate of 10 MSamples/s. The maximum measuring time is only limited by the available space on the hard drive. The high sampling rate makes it possible to capture short events with high accuracy. It is also possible to monitor e.g. the line power for a very long time and afterwards view and analyze each cycle of the signal thoroughly. The input of the Handyprobe HP3 is differential, which means that both sides of the input have a high impedance. There is no connection to ground as in conventional oscilloscopes which are used with coax cables and standard probes. The special low noise Measure lead TP-C812A is developed for the Handyprobe HP3. It is very insensitive to external interfering signals. The two ends can be placed up to two meters apart, while picking up very little interference. With a conventional oscilloscope with standard probes this is not possible. The maximum distance between the positive side and ground of a standard probe is usually limited to approximately 20 cm. The Measure lead TP-C812A for the Handyprobe HP3 does not have this limitation. Measuring between two distant points is now no problem anymore. The Measure lead TP-C812A uses a heat resistant silicone isolation and shrouded banana plugs. The Handyprobe HP3 is designed to fit nicely in your hand. Its housing is fitted with soft rubber areas that ensure a good grip on it. A wrist strap can be attached, to carry the Handyprobe HP3 or to hang it near the test setup. Fast and compact measuring instrument with a wide input range from 200 mV full scale to 800 V full scale without the need for additional probes or attenuators. High bandwidth of 50 MHz to be able to analyze fast signals accurately. No short circuit to ground possible, due to the differential input. This means extra protection for your PC. The two measuring points can be far apart, making it easy to measure in large installations. Fast streaming, up to 10 million samples per second continuously for fast and long measurements. Amplitude accuracy of 0.3% full scale. Most oscilloscopes have an accuracy of 2 - 3 %. No external power supply required. Power is gotten from a USB port. Very versatile Multi Channel software with an oscilloscope, spectrum analyzer, Y-t recorder and voltmeter with many signal analysis functions. Exporting of measured data to various common data formats, making it possible to create your own reports. The Handyprobe HP3 comes in a solid case, including test pins and crocodile clamps.

$387.00

ATS5004D

ATS5004D

Automotive Scope The Automotive scope ATS5004D is a four channel automotive oscilloscope with differential inputs. -50 MS/s max. Sample Rate, 16/14/12 bits resolution 128KS On-Board memory per Channel 50 MHz bandwidth 4 Ch. BNC Input Channels The ATS4004D comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the ATS5004D can be operated as: storage oscilloscope spectrum analyzer voltmeter Data Logger The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. It also allows to perform mathematical operations on the measured data, like adding, subtracting, multiplying, integrating, differentiating, filtering etc. This can be as simple as adding two signals together and display the result in a graph, or it can be very complex. Complex mathematical operations can be performed by combining several mathematical operations. Measured data can be printed and saved to disk in various common data formats. The Automotive scope ATS5004D comes with the SureConnect test as standard

$3531.00

TP-RP-HS

TP-RP-HS

TiePie HandyScope Rubber Protector Add a Rubber Protector to your TiePie HandyScope for a terrific look while protecting it.

$47.00

FCIX Digitizer

FCIX Digitizer

Gage FCIX Units: LAN Based Digitizer. The GaGe series of Faceless Connected Instruments (FCiX) provide test and measurement professionals new options for integrating high resolution, multi-channel digitizers into Ethernet and LAN enabled measurement systems. The applications served include manufacturing test, automotive test, remote communications monitoring, multi-site semiconductor test, and other solutions where a lightweight but powerful, multi-channel, independent digitizer system is required. GaGe's FCiX family provides a 14-bit or 16-bit digitizing solution with 4 or 8 channels, 25 to 200 MS/s maximum sampling rate, and 1 GS of on-board real-time acquisition memory. The new FCiX digitizers can stand alone, or mount into an existing ATE test environment, and are fully supported by the GaGe SDKs for LabVIEW, MATLAB, and C/C#. The Ethernet based FCiX Digitizers are fully VXI-11 compliant, allowing discovery of the digitizer instrument over a TCP/IP network. They are fully accessible and operable via a web browser, or with GaGe's programming-free GaGeScope PC Oscilloscope Software, which can enable rapid deployment of remote or distributed measurement systems. The FCiX digitizers' feature a 12V DC external power supply, and the small light-weight form factor allows for easy portability as a stand alone unit, or can be optionally installed as a 1U rack mount instrument.

Call Us

TP-ADK

TP-ADK

Automotive Scope ATS5004D + Acessories The Automotive scope ATS5004D is a four channel automotive oscilloscope with differential inputs. -50 MS/s max. Sample Rate, 16/14/12 bits resolution 128KS On-Board memory per Channel 50 MHz bandwidth 4 Ch. BNC Input Channels The ATS4004D comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the ATS5004D can be operated as: storage oscilloscope spectrum analyzer voltmeter Data Logger The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. It also allows to perform mathematical operations on the measured data, like adding, subtracting, multiplying, integrating, differentiating, filtering etc. This can be as simple as adding two signals together and display the result in a graph, or it can be very complex. Complex mathematical operations can be performed by combining several mathematical operations. Measured data can be printed and saved to disk in various common data formats. The Automotive scope ATS5004D comes with the SureConnect test as standard

$4467.00
