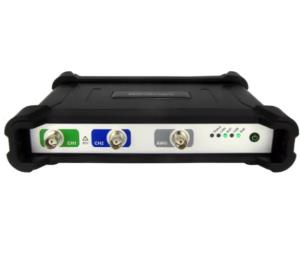

WiFiScope WS5-540 with 64M Samples Extended memory, Sure Connect and 5 years warranty added Options With CDS Generator of up to 40MS/s 2-Channel Analog Inputs Up to 500 MS/s max. Sample Rate Selectable Resolution of 8/12 bits,14 bits, 16 bits 250 MHz bandwidth (128KS On-Board memory per Channel, Standard Model) 1-Channel Arbitrary waveform generator 1uHz to 40 MHz sine, square and triangular waves High fidelity signals with CDS Generator 240 MS/s, 14-bit, 64Msamples Arbitrary waves The HandyScope HS5 comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the HandyScope HS5 can be operated as: storage oscilloscope spectrum analyzer voltmeter transient recorder function generator The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. It also allows to perform mathematical operations on the measured data, like adding, subtracting, multiplying, integrating, differentiating, filtering etc. This can be as simple as adding two signals together and display the result in a graph, or it can be very complex. Complex mathematical operations can be performed by combining several mathematical operations. Measured data can be printed and saved to disk in various common data formats. The Handyscope HS5 is available in 4 different models with an extended memory option

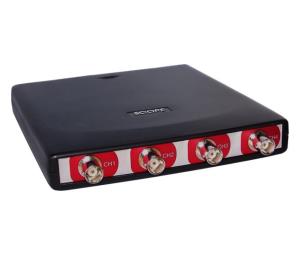

HS4-25 4 channel high resolution PC oscilloscope This Professional powerful computer controlled USB oscilloscope features four input channels. The Handyscope HS4 oscilloscope features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95dB), 200 mV to 80V full scale input range and 128 Ksamples record length per channel. Four Handyscope HS4 oscilloscope models are available, with a maximum sampling rate of respectively 5 MHz, 10 MHz, 25 MHz or 50 MHz on all four channels simultaneously. FAST CONTINUOUS STREAMING Besides measuring in block mode, the Handyscope HS4 is also capable of performing continuous streaming measurements. This will create a continuous uninterrupted data Stream to the computer. The data can then be displayed on the screen and/or saved to disk. combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-50 50 MS/s model Handyscope HS4-25 25 MS/s model Handyscope HS4-10 10 MS/s model Handyscope HS4-5 5 MS/s model View full specifications of HS4click here

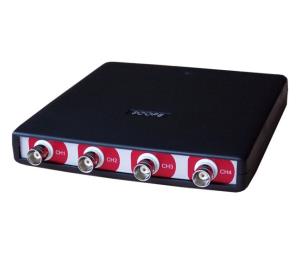

HS4-10 4 channel high resolution PC oscilloscope This Professional powerful computer controlled USB oscilloscope features four input channels. The Handyscope HS4 oscilloscope features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95dB), 200 mV to 80V full scale input range and 128 Ksamples record length per channel. Four Handyscope HS4 oscilloscope models are available, with a maximum sampling rate of respectively 5 MHz, 10 MHz, 25 MHz or 50 MHz on all four channels simultaneously. FAST CONTINUOUS STREAMING Besides measuring in block mode, the Handyscope HS4 is also capable of performing continuous streaming measurements. This will create a continuous uninterrupted data Stream to the computer. The data can then be displayed on the screen and/or saved to disk. combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-50 50 MS/s model Handyscope HS4-25 25 MS/s model Handyscope HS4-10 10 MS/s model Handyscope HS4-5 5 MS/s model View full specifications of HS4click here

HS4-5 4 channel high resolution PC oscilloscope This Professional powerful computer controlled USB oscilloscope features four input channels. The Handyscope HS4 oscilloscope features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95dB), 200 mV to 80V full scale input range and 128 Ksamples record length per channel. Four Handyscope HS4 oscilloscope models are available, with a maximum sampling rate of respectively 5 MHz, 10 MHz, 25 MHz or 50 MHz on all four channels simultaneously. FAST CONTINUOUS STREAMING Besides measuring in block mode, the Handyscope HS4 is also capable of performing continuous streaming measurements. This will create a continuous uninterrupted data Stream to the computer. The data can then be displayed on the screen and/or saved to disk. combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-50 50 MS/s model Handyscope HS4-25 25 MS/s model Handyscope HS4-10 10 MS/s model Handyscope HS4-5 5 MS/s model View full specifications of HS4click here

HS4-DIFF5 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here

HS4-DIFF-50 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here

HS4-DIFF-25 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here

HS4-DIFF-10 The Handyscope HS4 DIFF is a 4 channel differential USB oscilloscope with a maximum sampling speed of 50MS/s and 128 KSamples memory per channel. The differential input channels enable safely measuring, without risk of creating a short circuit through the oscilloscope. The Handyscope HS4 DIFF is delivered with a complete measurement software package that offers all you need for your measurement applications. DIFFERENTIAL INPUTS The Handyscope HS4 DIFF features four isolated differential input channels. This makes it the ideal instrument to perform measurements in high voltage circuits, amplifiers, switch mode power supplies, power inverters, etc. No more risk of creating short circuits through your oscilloscope! combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-DIFF-50 50 MS/s model Handyscope HS4-DIFF-25 25 MS/s model Handyscope HS4-DIFF-10 10 MS/s model Handyscope HS4-DIFF-5 5 MS/s model View full specifications of HS4-DIFFclick here
