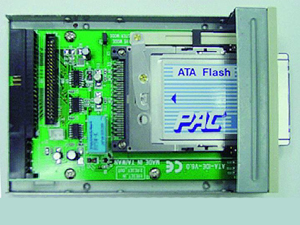

Card Master-IDE-611-HS ATA to standard IDE interface One front slot 40-pin IDE and 4-pins power connectors supported Standard 3.5" drive form factor Supports Type I/ II/ III ATA flash cards, ATA HDD and CompactFlash card (adaptor required) 5V@70mA power consumption (typical) Hot-Swap supported with Windows 98/ ME operating system

Card Master-IDE-112F Two front panel slots, access from front of PC Supports Type I/II/III cards, II + III Maximum Comply with PCMCIA V2.1, JEIDA 4.1 Supports S-RAM card, Flash card, ATA Flash card, ATA HDD and I/O card Supports Read/Write MS-FFS II/True FFS Dimensions in mm : Controller card with 168 x 110 x 15 (6.6" x 4.3" x 0.6") Internal drive with standard 3.5" form factor

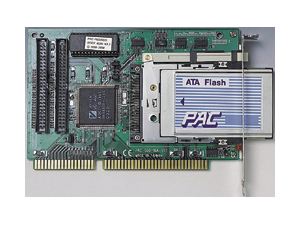

ISA Bus Card Master-IF One rear slot, access from rear of PC Supports Type I/II/III cards Comply with PCMCIA V2.1, JEIDA 4.1 Supports S-RAM card, Flash card, ATA Flash card, ATA HDD and I/O card Supports Read/Write MS-FFS II/True FFS Power Consumption: +5V@400mA (500mA, when flash) Dimensions in mm: 168 x 110 x 15 (6.6" x 4.3" x 0.6")

ISA Bus PCMCIA dual slots drive One front panel slot and one rear slot Supports TYPE I/II/III cards Comply with PCMCIA V2.1, JEIDA 4.1 Supports S-RAM card, Flash card, ATA Flash card, ATA HDD and I/O card Supports Read/Write MS-FFS II/True FFS Power Consumption +5V@400mA (500mA when flash) Dimensions in mm Controller card with168 x 110 x 15 (6.6" x 4.3" x 0.6") Internal drive with standard 3.5" form factor

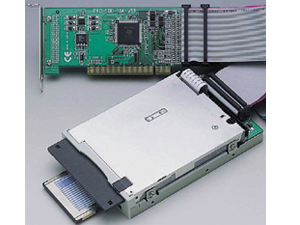

PCI Bus PCMCIA drives Complied with PCI power management and ACPI function Providing one 1.44 MMB floppy disk drive and one front PCMCIA slot Access from front slot Accepts Type I/II/III card (SRAM card, Linear Flash card, ATA card, Fax/Modem card and LAN card.) Complied with PCI local bus Specification Rev.2.1. Complied with 1995 PC Card (CardBus) standard Intel 82365SL register compatible Supports 5V/3.3V, 16-bit cards T/I PCI 1410 PCMCIA controller

PCI Bus PCMCIA drives Complied with PCI power management and ACPI function Two front slots, access from rear of PC Accepts Type I/ II/ III card (SRAM card, Linear Flash card, ATA card, Fax/Modem card and LAN card) Complied with PCI local bus Specification Rev.2.1. Complied with 1995 PC Card (CardBus) standard Intel 82365SL register compatible Supports 5V/ 3.3V, 16-bit cards T/I PCI 1420 PCMCIA controller

PCI Bus PCMCIA drives One rear slot, access from rear of PC Supports Type I/II/III card Comply with PCI local bus specification Rev. 2.1 Comply with 1995 PC card (CardBus) standard Intel 82365SL Register Compatible Mix and Match +5V/+3.3V PC Card 16 Cards and +3.3V CardBus Cards TI PCI 1225 PCMCIA controller Bundled software driver for all PC card works (without ISA boards)

PCI Bus PCMCIA drives One front and one rear slots Accepts Type I/II/III Card Comply with PCI local bus specification Rev. 2.1 Comply with 1995 PC card (CardBus) standard Intel 82365SL Register Compatible Mix and Match +5V/+3.3V PC CARD 16 Cards and +3.3V CardBus Cards Use TI PCI 1225 PCMCIA controller Bundled software driver for all PC card works (without ISA boards)
