24-Bit Standard Drive Digital I/O Board with SIP sockets for pull-up/pull-down resistors Features 24 digital I/O bits Extremely low cost

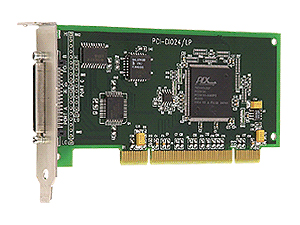

24-bit, logic level digital I/O board for low profile/half height PCI bus compatible computers Features: 24 bits of logic-level digital I/O Compatible with low profile/half height PCI slots Compatible with 5 Volt and 3.3 Volt PCI buses C55 based

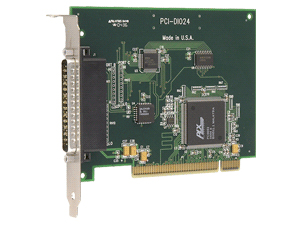

24-Bit PCI-bus Compatible, Logic Level Digital I/O Board Features 24 digital I/O bits Extremely low cost Provides direct connections to an 82C55 Compatible with a wide variety of Relay and SSR module racks Software compatible with the CIO-DIO24 Connector compatible with the popular CIO-DIO24

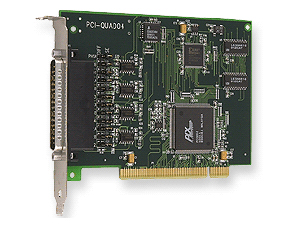

4 Channel quadrature encoder board Features: Extremely low cost Interfaces to industry standard Encoders 4 input channels Inputs are configurable for single-ended or differential mode. An interrupt controller yields powerful interrupt management capabilities Quad receivers can tolerate long lines in noisy environments Uses integrated digital filtering and 8-bit counter prescaler. Programmable index functionality provided Programmable multiple-counter modes possible including non-quadrature cascaded counting up to 96 bit. Each 24-bit counter can count in either binary or BCD modes

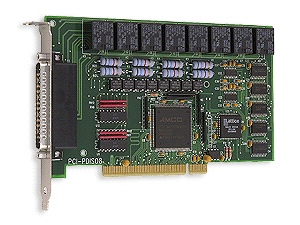

8 Channel, PCI-bus Compatible, High Voltage, High Current Digital I/O Board Features: 8 high voltage (5V-28V) AC/DC digital input channels 5 form C, 3 form A (NO) relays 3 Amp, 120VAC output control Register & Connector compatible with CIO-PDISO8

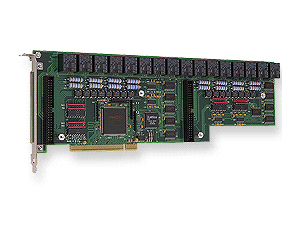

16 Electromechanical relays, 16 isolated (500V) digital input board for PCI bus Features: 16 high voltage (5V-28V) AC/DC digital input channels 16 form C electromechanical relays 3 Amp, 120VAC output control Register & Connector compatible with CIO-PDISO16

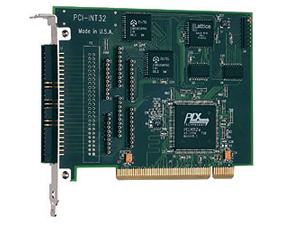

Z8536 based digital I/O & counter board Features:32 Vector, IRQ director Digital pattern recognition 40-Bits of digital I/O Six 16-bit counters Very low costFully plug and playFunctional Description:The PCI-INT32 is possibly the most powerful digital I/O accessory available for the personal computer. The heart of the PCI-INT32 is a pair or Zilog Z8536 programmable digital I/O chips.Z8536 Description:Digital I/0 - 20-bit, independently set for input/output, 2 or 3 wire hand shaking supported Counters - 3 counters set up independently or chained together internally. 32 Vector Interrupt The Z8536 can accept 16 independent external interrupts, and output an interrupt to the PC. The output from the two Z8536s may be ANDed by an on board jumper.Software Description:Includes InstaCal ® , installation, calibration and test software. The PCI-INT32 series is supported by the UniversalLibrary ® . Cables / Screw Terminal Boards:C50FF-# / CIO-MINI50

100KS/s 16-channel 16-bit Analog Input, 2-Channel 12-bit Analog Output with 16 Digital Input/16 Digital output FEATURES: 16-bit A/D converter 12-bit D/A converter SPECIFICATIONS: 16 single-ended or 8 differential input channels 100 k/s sampling rate Two 12-bit analog output channel Analog Output Range : 0~5V , 0~10V Software programmable gain : 0.5 , 1 , 2 , 4, 8 Interrupt handling A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , and EventTrigger A/D data transfer modes : polling , interrupt , DMA 16 x digital input & 16 digital output 37 pin D-Sub connector D/A Outputs Channels: 2 independent Type 12-bit double buffered Linearity 0.006% FS Output range Internal reference 0~5V or 0~10V External reference max +10V or -10V Output Driving 5mA Digital I/O Inputs (LSTTL) : 16 Input low VIL = 0.8V max. ; IIL =-0.4mA max. Input high VIH = 2.0V min. ; IIH = 20*A max. Outputs (LSTTL) : 16 Output low VOL = 0.5V max. @IOL =8mA max. Output high VOH = 2.7V min; @IOH =-400*Amax. Timer/Counter Programmable Interval Timer (0.0045Hz~0.5MHz) Type 82c54 A/D pacer 32 bit counter (A-822PGH/L) A/D pacer 16 bit counter (A-823PGH/L) Interrupt channel 3-15 jumper selectable General Environment Power Requirements +5V @350mA max. Operating temp 0-50ºc Storage temp -20 to 70ºc Humidity 0 to 90% non-condensing Dimensions 170mm x 122 mm
