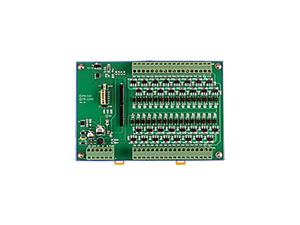

16-channel Digital Input and 16-channel Open Collector Output Module Functional Description The FR-16P16R has 16-channel isolated digital input and 16-channel relay output, while FR-4P4R has 4-channel isolated digital input and 4-channel relay output. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface and can be used as a dist r ibuted remote I /O module or a MagicWire module.The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR- 16P16R and FR-4P4R, refer to related literatures of I- 7188EF, I-8122 and FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of input channels: 16 (FR-16P16R); 4 (FR-4P4R); each with its own ground reference; isolated from each other Digital Logic Level: Input low voltage: 0 ~ 1V Input high voltage: 3.5 ~ 30 VDC Input impedance: 3K; 1/4W Response time: 1 KHz max Number of output channels: 16 (FR-16P16R); 4 (FR-4P4R) Nominal load: 3A/125Vdc, 3A/270Vac Switching power: 1250VA, 150W Switching voltage: 125Vdc, 270Vac Switching current: 5A Life expectancy: mechanical; electrical Resistive load: 100,000 ops. min; 250Vac/30Vdc@3A Mechanically: 20,000,000 ops. at no load Release time: 5ms Control logic: TTL Low, Relay on Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@75mA(max) (FR-16P16R) 24V@25mA(max) (FR-4P4R) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm (FR-4P4R) 173 mm x 117 mm (FR-16P16R) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit
