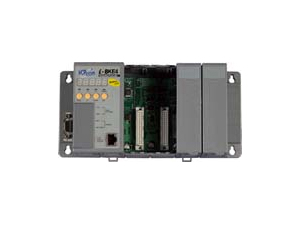

Modbus/TCP Embedded Controller with 4 empty slots Default firmware features: Supports Modbus/TCP communication protocol to access I/Os that plug on slots. Supports VxComm technique for every COM port of controllers. Supports 8K and 87K DI/DO/AI/AO modules. Please refer detail list in Modbus Utility on-line help. Automatically scan I/O modules and range I/O registers address to continuous.You can plug I/O modules in any slot. The Modbus firmware can automatically scanall slots and range I/Os to registers in continuous. Allowed a maximum of 8 host PCs access simultaneously.In fact, it can allow 16 host PCs access simultaneously. But for getting better stability, we recommend you don'tuse more than 8 host PCs to access a Modbus/TCP controller. Firmware modifiable We provide the Modbus SDK allowing users to develop their custom Modbus firmware.

Modbus/TCP Embedded Controller with 8 empty slots with 80M CPU Default firmware features: Supports Modbus/TCP communication protocol to access I/Os that plug on slots. Supports VxComm technique for every COM port of controllers. Supports 8K and 87K DI/DO/AI/AO modules. Please refer detail list in Modbus Utility on-line help. Automatically scan I/O modules and range I/O registers address to continuous.You can plug I/O modules in any slot. The Modbus firmware can automatically scanall slots and range I/Os to registers in continuous. Allowed a maximum of 8 host PCs access simultaneously.In fact, it can allow 16 host PCs access simultaneously. But for getting better stability, we recommend you don'tuse more than 8 host PCs to access a Modbus/TCP controller. Firmware modifiable We provide the Modbus SDK allowing users to develop their custom Modbus firmware.

4-slots Ethernet I/O unit (Gray color) Features Supports IPv4 Supports Modbus/TCP communication protocol at Ethernet port. Supports Modbus/RTU communication protocol at RS-232 port. Supports 8K and 87K series DI/DO/AI/AO/Counter/Frequency modules I/O configurable via the Ethernet (Using the Modbus Utility) I/O scan engine The engine can automatically scan I/O modules plug in slots and range I/O registers address to continuous to have high-data-density registers to get best communication efficiency. Detection of I/O module communication status (online/offline). The SMMI of the panel can be used to 1. Configure the network setting (IP, Mask, Gateway) 2.Set the offset value of AI/AO module Allowed a maximum of 8 host PCs access simultaneously Firmware updateable (via the RS-232 port) Firmware programmable We provide the Modbus SDK allowing users customized the Modbus firmware. Specifications CPU:80186-80 or compatible (16-bit and 80MHz) SRAM:512KBytes Flash ROM : 512KBytes EEPROM : 2KBytes Built-in Watchdog Timer Ethernet port: 10BaseT NE2000 compatible Real time clock COM0: internal use (to communicate with 87K COM1: RS-232 (to update firmware) modules on slots) SMMI (small man machine interface) 5 digits number LED display 4 LED indicators 4 push buttons I/O expansion slots: 4 slots for I-8KE4 8 slots for I-8KE8 Frame ground (FG) Safety grounded Surge protection Power consumption: 3.9 W (for I-8KE4) 5.1 W (for I-8KE8) Power supply: 20W Power requirement: 10 ~ 30 VDC Dimensions 230 x 110 x 75.5 mm (for I-8KE4) 354 x 110 x 75.5 mm (for I-8KE8) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

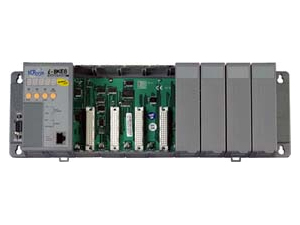

8-slots Ethernet I/O unit (Gray color) Features Supports IPv4 Supports Modbus/TCP communication protocol at Ethernet port. Supports Modbus/RTU communication protocol at RS-232 port. Supports 8K and 87K series DI/DO/AI/AO/Counter/Frequency modules I/O configurable via the Ethernet (Using the Modbus Utility) I/O scan engine The engine can automatically scan I/O modules plug in slots and range I/O registers address to continuous to have high-data-density registers to get best communication efficiency. Detection of I/O module communication status (online/offline). The SMMI of the panel can be used to 1. Configure the network setting (IP, Mask, Gateway) 2.Set the offset value of AI/AO module Allowed a maximum of 8 host PCs access simultaneously Firmware updateable (via the RS-232 port) Firmware programmable We provide the Modbus SDK allowing users customized the Modbus firmware. Specifications CPU:80186-80 or compatible (16-bit and 80MHz) SRAM:512KBytes Flash ROM : 512KBytes EEPROM : 2KBytes Built-in Watchdog Timer Ethernet port: 10BaseT NE2000 compatible Real time clock COM0: internal use (to communicate with 87K COM1: RS-232 (to update firmware) modules on slots) SMMI (small man machine interface) 5 digits number LED display 4 LED indicators 4 push buttons I/O expansion slots: 4 slots for I-8KE4 8 slots for I-8KE8 Frame ground (FG) Safety grounded Surge protection Power consumption: 3.9 W (for I-8KE4) 5.1 W (for I-8KE8) Power supply: 20W Power requirement: 10 ~ 30 VDC Dimensions 230 x 110 x 75.5 mm (for I-8KE4) 354 x 110 x 75.5 mm (for I-8KE8) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

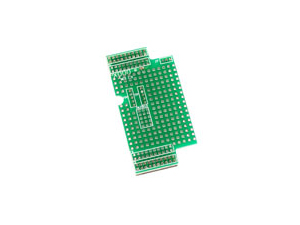

Prototype board (Small size) FEATURES: (For 7188XC) SPECIFICATIONS: Small size : 38mm x 64mm

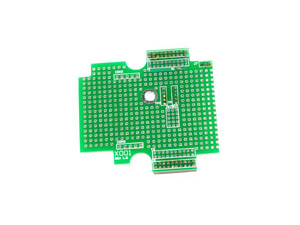

Prototype board (Small size) FEATURES: (For 7188XC) SPECIFICATIONS: Small size : 60mm x 70mm

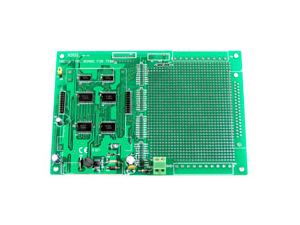

Prototype board FEATURES: (For 7188XC,7188XB,7188XG,7188EX,7188EG) SPECIFICATIONS: Small size : 114mm x170mm

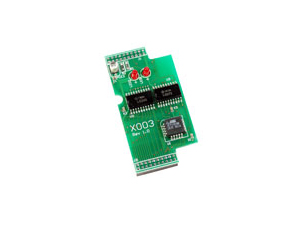

Self-test FEATURES: (For 7188XA,7188XC) SPECIFICATIONS: Power consumption : 0.2 W
