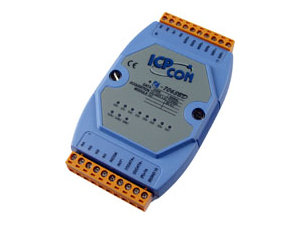

Digital I/O Module (AC SSR type) with LED Display Digital Input Channels: 8 Digital Input level: Isolated with common power Logic level 0: +1V max. Logic level 1: +4V to+ 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 8 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter : 0-65,535 SSR AC output Channels: 3 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: DC:3~ 30Vdc @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.1mA(at 30Vdc) 1 Cycle surge current : 3A(10ms) Max. on-state voltage drop:1.2Vdc Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.6W max. for I-7063B 1.4W max. for I-7063BD

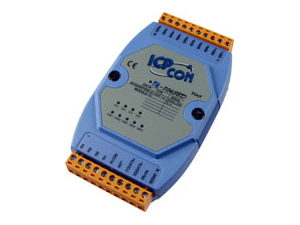

Digital I/O Module (AC SSR type) with LED Display with LED Display Digital Input Channels: 8 Digital Input level: Isolated with common power Logic level 0: +1V max. Logic level 1: +4V to+ 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 8 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter : 0-65,535 SSR AC output Channels: 3 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: DC:3~ 30Vdc @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.1mA(at 30Vdc) 1 Cycle surge current : 3A(10ms) Max. on-state voltage drop:1.2Vdc Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.6W max. for I-7063B 1.4W max. for I-7063BD

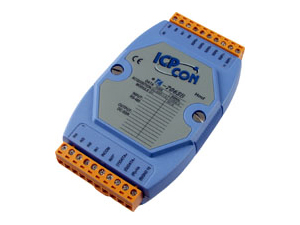

Power Digitla Output & Isolated Digital Input Module Digital Input Channels: 4 Digital Input level: Four isolated channels with common power Digital input: Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W Counter Input frequency: 100Hz per channel 16-bit counter: 0~65,535 Digital Output Relay output Channels: 5 Form “A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC: 250VAC @5A DC: 30V @5A Surge Strength: 4,000Vac Relay on time(typical): 6ms Relay off time(typical): 3ms Total switching time: 10ms Insulation resistance : 1000MOhm min. at 500Vdc Life Time : Mechanical: 20 X 10^6ops Electrical : 100 X 10^3ops Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.3W max. for I-7065 2.2W max. for I-7065D

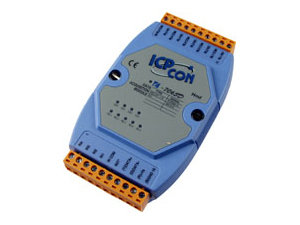

Power Digitla Output & Isolated Digital Input Module with LED Display Digital Input Channels: 4 Digital Input level: Four isolated channels with common power Digital input: Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W Input frequency: 100Hz per channel 16-bit counter: 0~65,535 Digital Output Relay output Channels: 5 Form “A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC: 250VAC @5A DC: 30V @5A Surge Strength: 4,000Vac Relay on time(typical): 6ms Relay off time(typical): 3ms Total switching time: 10ms Insulation resistance : 1000MOhm min. at 500Vdc Life Time : Mechanical: 20 X 10^6ops Electrical : 100 X 10^3ops Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.3W max. for I-7065 2.2W max. for I-7065D

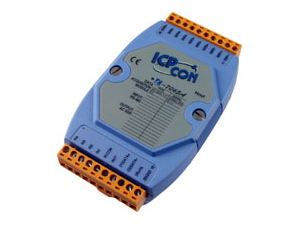

Digital I/O Module (AC SSR type) Digital Input Channels: 4 Digital Input level: Four isolated channels with common power Digital input: Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 4 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter: 0~65,535 Digital Output SSR output Channels: 5 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC:24~ 265Vrms @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.75mA(at 100Vrms 60Hz) 1.50mA(at 200Vrms 60Hz) 1 Cycle surge current : 50A(60Hz) Max. on-state voltage drop:1.2Vrms Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms+1/2rms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Consumption : 0.8W max. for I-7065A 1.6W max. for I-7065AD

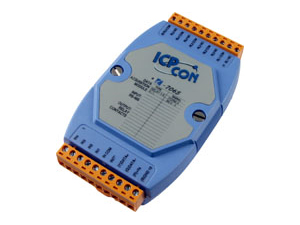

Digital I/O Module (AC SSR type) with LED Display Digital Input Channels: 4 Digital Input level: Four isolated channels with common power Digital input: Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 4 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter: 0~65,535 Digital Output SSR output Channels: 5 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC:24~ 265Vrms @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.75mA(at 100Vrms 60Hz) 1.50mA(at 200Vrms 60Hz) 1 Cycle surge current : 50A(60Hz) Max. on-state voltage drop:1.2Vrms Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms+1/2rms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Consumption : 0.8W max. for I-7065A 1.6W max. for I-7065AD

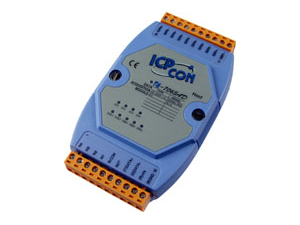

Digital I/O Module (DC SSR type) Digital Input Channels: 4 Digital Input level: Four isolated channels with common power Digital input: Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 4 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter: 0~65,535 Digital Output SSR output Channels: 5 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: DC:3~ 30Vdc @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.1mA(at 30Vdc) 1 Cycle surge current : 3A(10ms) MMax. on-state voltage drop:1.2Vdc Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.6W max. for I-7065B 1.4W max. for I-7065BD

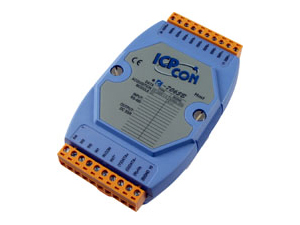

Digital I/O Module (DC SSR type) with LED Display Digital Input Channels: 4 Digital Input level: Four isolated channels with common power Digital input: Logic level 0: +1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 4 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter: 0~65,535 Digital Output SSR output Channels: 5 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: DC:3~ 30Vdc @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.1mA(at 30Vdc) 1 Cycle surge current : 3A(10ms) MMax. on-state voltage drop:1.2Vdc Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.6W max. for I-7065B 1.4W max. for I-7065BD
