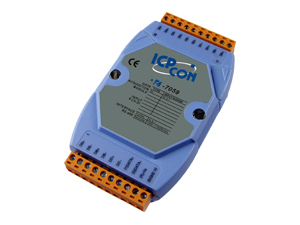

8-channel Isolated AC Voltage Digital Input Module Digital Input Digital Input Channel : 8(sink/source) Input Type : Differential, isolated Operating Voltage : 10~50 Vac Peak Voltage : 70 Vac AC Frequency : 47~400Hz (> 45Hz min) ON Voltage Level : > 10.0V OFF Voltage Level : < 3.0V Input Impedance : 10K Ohm, 1/2W Counter Frequency : D/I can be used as counter channels: 8(16-bit: 0~6,5535) Max.Counter Frequency :100Hz ( When AC frequency > 60Hz) Isolation : 5000 Vrms Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.3 W (max.) for I-7059 1.0 W (max.) for I-7059D

8-channel Isolated AC Voltage Digital Input Module with LED Display Digital Input Digital Input Channel : 8(sink/source) Input Type : Differential, isolated Operating Voltage : 10~50 Vac Peak Voltage : 70 Vac AC Frequency : 47~400Hz (> 45Hz min) ON Voltage Level : > 10.0V OFF Voltage Level : < 3.0V Input Impedance : 10K Ohm, 1/2W Counter Frequency : D/I can be used as counter channels: 8(16-bit: 0~6,5535) Max.Counter Frequency :100Hz ( When AC frequency > 60Hz) Isolation : 5000 Vrms Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.3 W (max.) for I-7059 1.0 W (max.) for I-7059D

4-channel Relay Output and 4-channel isolated Digtal Input Module Digital Input Channels: 4 Four isolated channels with common power Digital input level: Logic level 0: +1V max. Logic level 1: +4V to +30V Isolation voltage: 3750Vrms Input impedance: 3KOhm , 0.5W D/I can be used as counter channels: 4 Input Frequency : 100Hz 16-bit : 0~6,5535 Digital Output Relay output Channels: 4 Two form “A”relay SPST (N.O.) Two form “C”relay SPDT Dry contact Characteristics Contact rating: AC: 125V @0.6A; 250V @0.3A DC: 30V @2A; 110V @0.6A Breakdown voltage: 500VAC (50/60Hz) Relay on time(typical): 3ms Relay off time(typical): 1ms Total switching time: 10ms Insulation resistance: 1000MW min. at 500Vdc Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.3W for I-7060 1.9W for I-7060D

4-channel Relay Output and 4-channel isolated Digtal Input Module with LED Display Digital Input Channels: 4 Four isolated channels with common power Digital input level: Logic level 0: +1V max. Logic level 1: +4V to +30V Isolation voltage: 3750Vrms Input impedance: 3KOhm , 0.5W D/I can be used as counter channels: 4 Input Frequency : 100Hz 16-bit : 0~6,5535 Digital Output Relay output Channels: 4 Two form “A”relay SPST (N.O.) Two form “C”relay SPDT Dry contact Characteristics Contact rating: AC: 125V @0.6A; 250V @0.3A DC: 30V @2A; 110V @0.6A Breakdown voltage: 500VAC (50/60Hz) Relay on time(typical): 3ms Relay off time(typical): 1ms Total switching time: 10ms Insulation resistance: 1000MW min. at 500Vdc LED indicated Digital I/O status Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.3W for I-7060 1.9W for I-7060D

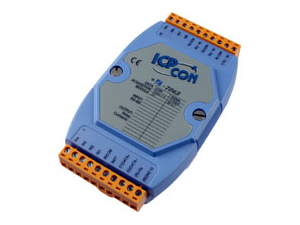

Power Relay Output & Isolated Digital Input Module Digital Input Channels: 8 Digital Input level: Isolated with common power Logic level 0: +1V max. Logic level 1: +4V to+ 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 8 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter : 0-65,535 Relay Output Channels: 3 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC: 250V @5A DC: 30V @5A Surge strength: 4,000VAC Relay on time(Max.): 6ms Relay off time(Min.): 3ms Insulation resistance: 1000MOhm min. at 500Vdc Life time : Mechanical : 20 X 10^6 OPS Electrical : 100 X 10^3 Full Load Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.0W max. for I-7063 1.5W max. for I-7063D

Power Relay Output & Isolated Digital Input Module with LED Display Digital Input Channels: 8 Digital Input level: Isolated with common power Logic level 0: +1V max. Logic level 1: +4V to+ 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 8 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter : 0-65,535 Relay Output Channels: 3 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC: 250V @5A DC: 30V @5A Surge strength: 4,000VAC Relay on time(Max.): 6ms Relay off time(Min.): 3ms Insulation resistance: 1000MOhm min. at 500Vdc Life time : Mechanical : 20 X 10^6 OPS Electrical : 100 X 10^3 Full Load Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.0W max. for I-7063 1.5W max. for I-7063D

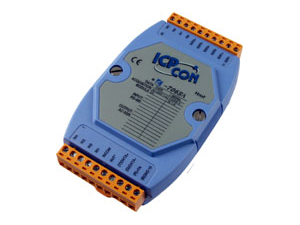

Digital I/O Module (AC SSR type) Digital Input Channels: 8 Digital Input level: Isolated with common power Logic level 0: +1V max. Logic level 1: +4V to+ 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 8 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter : 0-65,535 SSR AC output Channels: 3 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC:24~ 265Vrms @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.75mA(at 100Vrms 60Hz) 1.50mA(at 200Vrms 60Hz) 1 Cycle surge current : 50A(60Hz) Max. on-state voltage drop:1.2Vrms Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms+1/2rms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.7W max. for I-7063A 1.5W max. for I-7063AD

Digital I/O Module (AC SSR type) with LED Display Digital Input Channels: 8 Digital Input level: Isolated with common power Logic level 0: +1V max. Logic level 1: +4V to+ 30V Isolation voltage: 3750Vrms Input impedance: 3KO , 0.5W 8 Digital input channel with counter function Input Frequency : 100Hz 16-bit counter : 0-65,535 SSR AC output Channels: 3 form "A” relay SPST (N.O.) Dry contact Characteristics Contact rating: AC:24~ 265Vrms @1.0Arms Max. Load current 1.0Arms Min. Load current 10mArms Max. off-state leakage current 0.75mA(at 100Vrms 60Hz) 1.50mA(at 200Vrms 60Hz) 1 Cycle surge current : 50A(60Hz) Max. on-state voltage drop:1.2Vrms Surge strength: 4,000Vac Relay on time(Max.): 1ms Relay off time(Min.): 1ms+1/2rms Insulation resistance: 1,000MOhm min.at 500Vdc Life time : long life, maintence free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.7W max. for I-7063A 1.5W max. for I-7063AD
