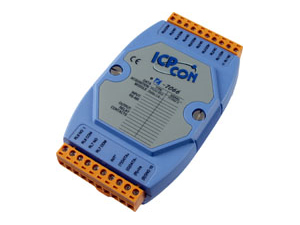

PhotoMOS Relay Output Module Digital Output Channels: 7 (Form A) Continuous load current:0.13A (peak AC) Peak load current: 0.4A Output Power dissipation : 0.5W Output Off state leakage current : 1uA Output On resistance : 23Ohm Load voltage : 350V(peak AC) Turn On time : 0.7ms (typical) Turn Off time : 0.05ms(typical) Input / Output Isolation : 5,000VAC optical isolation Life time : long life, maintenance free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.8W max. for I-7066 0.8W max. for I-7066D

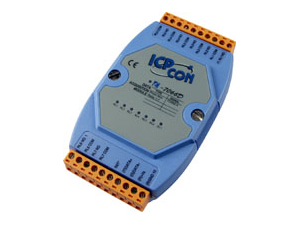

PhotoMOS Relay Output Module with LED Display Digital Output Channels: 7 (Form A) Continuous load current:0.13A (peak AC) Peak load current: 0.4A Output Power dissipation : 0.5W Output Off state leakage current : 1uA Output On resistance : 23Ohm Load voltage : 350V(peak AC) Turn On time : 0.7ms (typical) Turn Off time : 0.05ms(typical) Input / Output Isolation : 5,000VAC optical isolation Life time : long life, maintenance free Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.8W max. for I-7066 0.8W max. for I-7066D

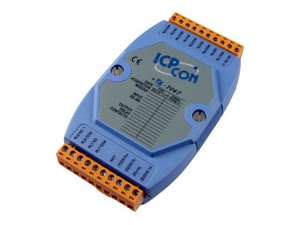

Relay Output Module Relay output Channels: 7 Form “A” relay SPST N.O. Dry Contacts AC 120V@0.5A DC 24V@1A Surge strength: 1500Vac Relay on time(typical): 5 ms Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.5W max. for I-7067 2.2W max. for I-7067D

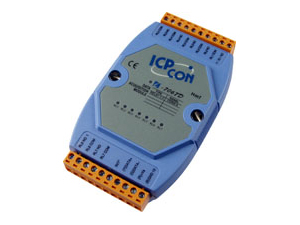

Relay Output Module with LED Display Relay output Channels: 7 Form “A” relay SPST N.O. Dry Contacts AC 120V@0.5A DC 24V@1A Surge strength: 1500Vac Relay on time(typical): 5 ms Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.5W max. for I-7067 2.2W max. for I-7067D

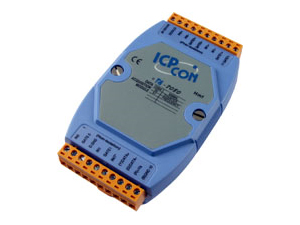

Counter/Frequency Input Module Counter Input Channels: 2 independent 32-bit counters, counter 0&1 Input mode: Isolated or non-isolated Isolation input levels: Logic level 0:+1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Non-Isolation input level: Programmable threshold voltage Logic level 0: 0 to +5V (default= 0.8V) Logic level 1: 0 to +5V (default= 2.4V) Maximum count: 32 bit (4,294,967,295) Programmable digital noise filter: 2 us to 65 ms Alarming: alarm on counter 0 or counter 0 & 1, programmable Counter preset value: programmable Display LED Indicator : 5-digit readout, Channel 0 or Channel 1 Frequency Measurement Input frequency: 1 Hz to 100KHz max. Programmable built-in gate time: 1.0/0.1sec Digital Output 2-channels, open-collector to 30V, 30mA max. load Power dissipation: 300mW Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 2.0W max. for I-7080 2.2W max. for I-7080D

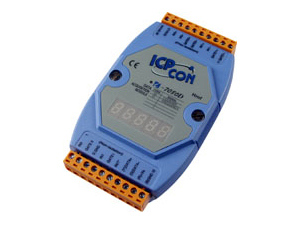

Counter/Frequency Input Module with LED Display Counter Input Channels: 2 independent 32-bit counters, counter 0&1 Input mode: Isolated or non-isolated Isolation input levels: Logic level 0:+1V max. Logic level 1: +3.5 to 30V Isolation voltage: 3750Vrms Non-Isolation input level: Programmable threshold voltage Logic level 0: 0 to +5V (default= 0.8V) Logic level 1: 0 to +5V (default= 2.4V) Maximum count: 32 bit (4,294,967,295) Programmable digital noise filter: 2 us to 65 ms Alarming: alarm on counter 0 or counter 0 & 1, programmable Counter preset value: programmable Display LED Indicator : 5-digit readout, Channel 0 or Channel 1 Frequency Measurement Input frequency: 1 Hz to 100KHz max. Programmable built-in gate time: 1.0/0.1sec Digital Output 2-channels, open-collector to 30V, 30mA max. load Power dissipation: 300mW Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 2.0W max. for I-7080 2.2W max. for I-7080D

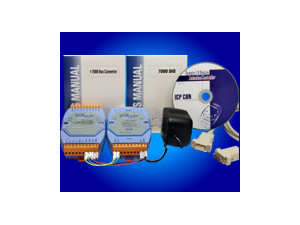

Digital Control Learning Kit Purpose: To use the RS-485 network to control digital I/O module Including : I-7520x1 I-7060Dx1

Analog Learning Kit Purpose: To use the RS-485 network to acquire analog signal Including : I-7520x1 I-7012Dx
