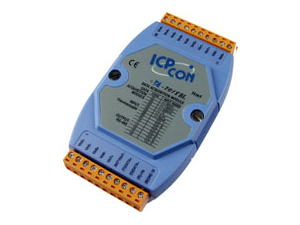

8-channel Analog Input Module Analog Input Photo-isolation: 3750 Vrms Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C Channels : 8 differential or 6 differential and 2 single-ended by jumper select Sampling rate: 10 Samples/Second Bandwidth: 15.7 Hz Accuracy: !O 0.1% Zero drift: !O 25uV/￠XC CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Span drift: 25ppm/￠XC Over voltage protection: !O 35V Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.0W

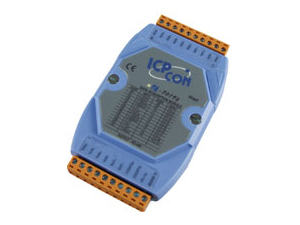

8-channel Analog Input Module Analog Input Photo-isolation: 3750 Vrms Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C Channels : 8 differential Voltage range: !O15mV, !O 50mV , !O 100mV, !O 500mV, !O 1V, !O 2.5V Current range: !O 20mA Sampling rate: 10 Samples/Second Bandwidth: 15.7 Hz Accuracy: !O 0.2% Zero drift: !O 10uV/￠XC CMR @ 50/60 Hz: 86 dB Typical NMR @ 50/60 Hz: 100 dB Over voltage protection: 240Vrms Wire Opening Detection for Thermocouple Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.0W

8-channel universal Analog Input Module Analog Input Input Type: mV, V, mA,Thermocouple Input Channels: 8 differential Voltage range: !O 15mV,!O 50mV,!O 100mV, !O 150mV, !O 500mV, !O 1V, !O 2.5V, !O 5V, !O 10V Current range: !O 20mA (jumper selectable) Thermocouple Range : Type J, K, T, E, R, S, B, N, C, L, M, L2 Resolution : 16-bits Sampling Rate : 8 samples/second (Total) Accuracy : +/-0.05% -3dB BandWidth : 5.24Hz Common Mode Rejection : Typical 86dB Voltage Input Impedance : 20M Ohms Overvoltage Voltage Protection : +/-15Vdc Individual Channel Configurable Wire Opening Detection for Thermocouple Isolation Voltage : 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.2W

8-channel Universal Analog Input Module with High Voltage Protection Analog Input Input Type: mV, V, mA,Thermocouple Input Channels: 8 differential Voltage range: !O 15mV,!O 50mV,!O 100mV, !O 150mV, !O 500mV, !O 1V, !O 2.5V, !O 5V, !O 10V Current range: !O 20mA (jumper selectable) Thermocouple Range : Type J, K, T, E, R, S, B, N, C, L, M, L2 Resolution : 16-bits Sampling Rate : 8 samples/second (Total) Accuracy : +/-0.15% -3dB BandWidth : 5.24Hz Common Mode Rejection : Typical 86dB Voltage Input Impedance : >2M Ohms Overvoltage Voltage Protection : +/-240Vrms Individual Channel Configurable Wire Opening Detection for Thermocouple Isolation Voltage : 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.2W

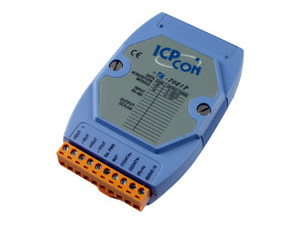

Analog Output Module Analog Output Photo-isolation: 3750 Vrms Channels: 1 Output type: mA, V Output range: 0 to 20mA , 4 to 20mA and 0 to 10V 12-bit resolution Accuracy: !O 0.1% of FSR Read back accuracy: !O 1% of FSR Resolution: !O 0.02% of FSR Zero drift: Voltage output: !O 30uV/￠XC Current output: !O 0.2uA/￠XC Span temperature Coefficient: !O 25ppm/ ￠XC Programmable output slope: 0.125 to 1024 mA/second 0.0625 to 512 V/second Current load resistance: Internal power: 500 ohms External 24V: 1050 ohms Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.8W

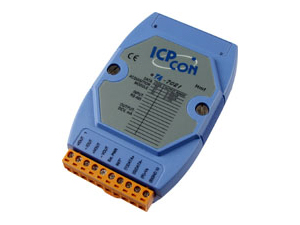

Analog Output Module Analog Output Photo-isolation: 3750 Vrms Channels: 1 Output type: mA, V Output range: 0 to 20mA , 4 to 20mA and 0 to 10V 16-bit resolution Accuracy: !O 0.02% of FSR Read back accuracy: !O 1% of FSR Resolution: !O 0.02% of FSR Zero drift: Voltage output: !O 10uV/￠XC Current output: !O 0.2uA/￠XC Span temperature Coefficient: !O 5ppm/ ￠XC Programmable output slope: 0.125 to 1024 mA/second 0.0625 to 512 V/second Current load resistance: Internal power: 500 ohms External 24V: 1050 ohms Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :1.8W

Analog Output Module Analog Output Photo-isolation: 3750 Vrms Channels: 2 Channel to channel isolation Output type: mA, V Output range: 0 to 20mA , 4 to 20mA and 0 to 10V 12-bit resolution Accuracy: !O 0.1% of FSR Read back accuracy: !O 1% of FSR Resolution: !O 0.02% of FSR Zero drift: Voltage output: !O 30uV/￠XC Current output: !O 0.2uA/￠XC Span temperature Coefficient: !O 25ppm/ ￠XC Programmable output slope: 0.125 to 1024 mA/second 0.0625 to 512 V/second Current load resistor: Internal power: 500 ohms External 24V: 1050 ohms Isolation: 3000Vdc Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :3.0W

4-channel 14-bit analog output Module Analog Output Photo-isolation: 3750 Vrms Indication LED Light: for power and communication Channels: 4 Output type: mA, V Output range: 0~20mA, 4~20mA,0~5V, +/-5V, 0~10V, +/-10V 14-bit resolution Accuracy: !O 0.1% of FSR Resolution: !O 0.02% of FSR Zero drift: Voltage output: !O 30uV/￠XC Current output: !O 0.2uA/￠XC Span temperature Coefficient: !O 20ppm/ ￠XC Programmable output slope: 0.125 to 2048 mA/second 0.0625 to 1024 V/second Current load resistor: External +24V power: 1050 Ohms Communication Interface RS-485 Power Supply Input: +10 to +30Vdc Consumption :2.4W
