Industrial Automation | i-7000 modules & cards

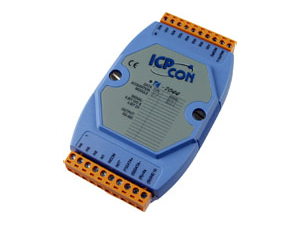

I-7044
Isolated Digital Input & Output Module Digital Input Channels: 4 Digital output status: Isolated channel with common power Digital input level: Logic level 0: +1V max. Logic level 1: +4V to +30V Isolation voltage: 3750V Input impedance: 3KOhm, 0.5W D/I can be used as counter channels: 4 Input Frequency: 100Hz 16-bit: 0~6,5535 Digital Output Channels: 8 Open collector to 30V Output current: 375mA per channel Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.0W for I-7044 1.7W for I-7044D
$231.00
I-7044D
Isolated Digital Input & Output Module with LED Display Digital Input Channels: 4 LED indicated Digital output status: Isolated channel with common power Digital input level: Logic level 0: +1V max. Logic level 1: +4V to +30V Isolation voltage: 3750V Input impedance: 3KOhm, 0.5W D/I can be used as counter channels: 4 Input Frequency: 100Hz 16-bit: 0~6,5535 Digital Output Channels: 8 Open collector to 30V Output current: 375mA per channel Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 1.0W for I-7044 1.7W for I-7044D
$244.00

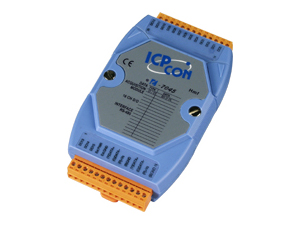

I-7045
16-channel Isolated Digital Output Module Digital Input Channels: 16 External Voltage: 10 to 40V max. Output current: 650mA per channel li> Isolation Voltage: 3750V Direct drive power relay module Short circuit protection Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.6W for I-7045 1.5W for I-7045D
$318.00
I-7045D
16-channel Isolated Digital Output Module with LED Display Digital Input Channels: 16 External Voltage: 10 to 40V max. Output current: 650mA per channel li> Isolation Voltage: 3750V Direct drive power relay module Short circuit protection Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.6W for I-7045 1.5W for I-7045D
$333.00
I-7050
Digital I/O Module Digital Input Channels: 7 (Sink) Digital input level: Logic level 0: +1V max. Logic level 1: +4V ~ +30V D/I can be used as counter channels: 7 Input Frequency : 100Hz 16-bit : 0~6,5535 Digital Output Channels: 8 (NPN, Sink) Open collector to 30V, 30mA max. load Power dissipation: 300mW Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.4W for I-7050 1.1W for I-7050D
$202.00
I-7050D
Digital I/O Module with LED Display Digital Input Channels: 7 (Sink) LED indicated Digital input level: Logic level 0: +1V max. Logic level 1: +4V ~ +30V D/I can be used as counter channels: 7 Input Frequency : 100Hz 16-bit : 0~6,5535 Digital Output Channels: 8 (NPN, Sink) Open collector to 30V, 30mA max. load Power dissipation: 300mW Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.4W for I-7050 1.1W for I-7050D
$215.00
I-7050A
Digital I/O Module (Current Source) Digital Input Channels: 7 (Source) Digital input level: Logic level 0: +1V max. Logic level 1: +4V ~ +30V D/I can be used as counter channels: 7 Input Frequency : 100Hz 16-bit : 0~6,5535 Digital Output Channels: 8 (NPN, Sink) Open collector to 30V, 50mA max. load Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.5W for I-7050A 1.4W for I-7050AD
$202.00
I-7050AD
Digital I/O Module (Current Source) with LED Display Digital Input Channels: 7 (Source) LED indicated Digital input level: Logic level 0: +1V max. Logic level 1: +4V ~ +30V D/I can be used as counter channels: 7 Input Frequency : 100Hz 16-bit : 0~6,5535 Digital Output Channels: 8 (NPN, Sink) Open collector to 30V, 50mA max. load Communication Interface RS-485 Power Supply Input Power: 10~30Vdc Consumption : 0.5W for I-7050A 1.4W for I-7050AD
$215.00
