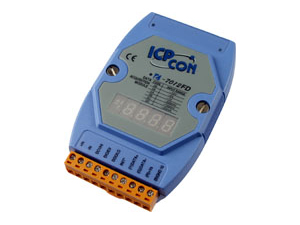

Analog Input Module with LED Display Analog Input Channels: 1 Type: mV, V , mA (requires optional external 125 ohm resistor) Input Channel: 1 Voltage range: !O 150mA, !O 500mV, !O 1V, !O 5V, !O 10V Current range: +/- 20mA Resolution: 12-bit Sampling rate: 100 Samples/Second Bandwidth: 5.24 Hz Accuracy: !O 0.25% or better Zero drift: !O 20uV/￠XC Span Drift: 25ppm/￠J CMR @ 50/60 Hz: 86 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000Vdc Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7012D) Communication Interface RS-485 Power Supply Input: +10 to +30 Vdc Consumption: 1.3W for I-7012 1.9W for I-7012D

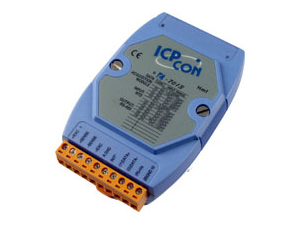

Analog Input Module Analog Input Channels: 1 Input Type: Pt , Ni Sampling rate:10 Samples/Second Resolution:16-bit Bandwidth: 5.24 Hz Wire connection: 2/3/4 wire Accuracy: !O 0.05% Zero drift : !O 0.5uV/￠J Span drift: !O25uV/￠J CMR @ 50/60 Hz: 150 dB min NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000 V rms Display LED 4 1/2 digits (for I-7013D only) Communication Interface RS-485 Power Supply Input Voltage Range: +10 to +30 Vdc Consumption: 0.7W for I-7013 1.3W for I-7013D

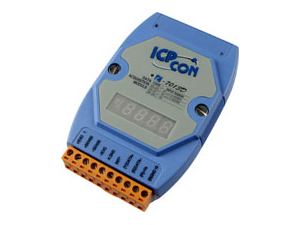

Analog Input Module with LED Display Analog Input Channels: 1 Input Type: Pt , Ni Sampling rate:10 Samples/Second Resolution:16-bit Bandwidth: 5.24 Hz Wire connection: 2/3/4 wire Accuracy: !O 0.05% Zero drift : !O 0.5uV/￠J Span drift: !O25uV/￠J CMR @ 50/60 Hz: 150 dB min NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000 V rms Display LED 4 1/2 digits (for I-7013D only) Communication Interface RS-485 Power Supply Input Voltage Range: +10 to +30 Vdc Consumption: 0.7W for I-7013 1.3W for I-7013D

Analog/Transmitter Input with LED Display Analog Input Photo-isolation: 3750 Vrms Channels: 1 Input type: V, mV, mA Input range: !O 150mV, !O500mV, !O 1V, !O 5V, !O 10V and !O 20mA Sampling rate:10 Samples/Second Bandwidth: 4 Hz Accuracy: !O 0.05% or better Zero drift : !O 20uV/￠J Span drift: !O 25ppm/￠J Isolated loop power: +15Vdc @ 30mA CMR @ 50/60 Hz: 86 dB NMR @ 50/60 Hz: 100 dB Line input converter Over voltage protection: !O 10V Digital Input Channels: 1 Logic 0: 0 to 1V Logic 1: 3.5V to 30V Input frequency: 50Hz max. Input pulse width: 1ms min. Digital Output Channels: 2 Open Collector to 30V, 30mA max. load Power dissipation: 300mW Display LED: 4 seven-segment LED Communication Interface RS-485 Power Supply Input Voltage Range: +10 to +30 Vdc Power Consumption: 1.9W

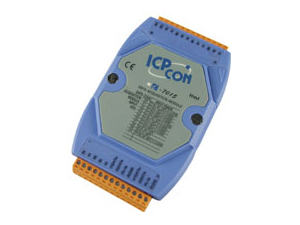

RTD Input Module Features Input Type : Supports 2/3 wire RTD Input channel : 6 RTD Range : Pt100,Pt1000, Ni120, Cu100, Cu1000 Resolution : 16-bit Accuracy : +/-0.05% Sampling Rate : 12 samples/second (Total) -3dB BandWidth : 5.24Hz Common Mode Rejection : Typical 86dB Voltage Input Impedance : >1M Ohms Individual Channel Configurable Wire Opening Detection Isolation Voltage : 3000Vdc Communication Interface RS-485 Power Supply Input Voltage Range : +10~+30Vdc Power Consumption :1.1W

2-channel Strain Gauge Input Module Analog Input Channels:2 Analog Input type : mV, V, mA Sampling Rate: 10 Samples/Second Resolution: 16-bit Bandwidth: 5.24Hz Accuracy: !O0.05% FSR Zero Drift: !O0.5￡gV/ ￠XC Span Drift: 25ppm/￠XC CMR @ 50/60Hz: 150dB NMR @ 50/60Hz: 100dB Input Impedance: 20M Ohms Isolation: 3000V rms Excitation Voltage Output Output Channels: 1 Output Range: 0 to +10V Max OUtput Load: 40mA Accuracy: !O0.05% of FSR Drift: !O50ppm/ ￠XC Output Impedance: 12 Ohms Isolation: 3000Vdc Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V strong>Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels:4 Open Collector to 30V Output Load: sink 30mA max Power Dissipation: 30mW Display LED 4 1/2 digit LED display ( I-7016D) Communication Interface RS-485 Power Supply Input Voltage Range : +10~+30Vdc Power Consumption : 2.4W for I-7016 3.0W for I-7016D

2-channel Strain Gauge Input Module with LED Display Strain Gauge Input Module Analog Input Channels:2 Analog Input type : mV, V, mA Sampling Rate: 10 Samples/Second Resolution: 16-bit Bandwidth: 5.24Hz Accuracy: !O0.05% FSR Zero Drift: !O0.5￡gV/ ￠XC Span Drift: 25ppm/￠XC CMR @ 50/60Hz: 150dB NMR @ 50/60Hz: 100dB Input Impedance: 20M Ohms Isolation: 3000V rms Excitation Voltage Output Output Channels: 1 Output Range: 0 to +10V Max OUtput Load: 40mA Accuracy: !O0.05% of FSR Drift: !O50ppm/ ￠XC Output Impedance: 12 Ohms Isolation: 3000Vdc Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V strong>Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels:4 Open Collector to 30V Output Load: sink 30mA max Power Dissipation: 30mW Display LED 4 1/2 digit LED display ( I-7016D) Communication Interface RS-485 Power Supply Input Voltage Range : +10~+30Vdc Power Consumption : 2.4W for I-7016 3.0W for I-7016D

1-channel Strain Fauge Input Module Analog Input Channels:1 Analog Input type : mV, V, mA Sampling Rate: 10 Samples/Second Resolution: 16-bit Bandwidth: 5.24Hz Accuracy: !O0.05% FSR Zero Drift: !O0.5￡gV/ ￠XC Span Drift: 25ppm/￠XC CMR @ 50/60Hz: 150dB NMR @ 50/60Hz: 100dB Input Impedance: 20M Ohms Isolation: 3000V rms Excitation Voltage Output Output Channels: 1 Output Range: 0 to +10V Resolution: 16-bit Max OUtput Load: 40mA Accuracy: !O0.05% of FSR Drift: !O50ppm/ ￠XC Output Impedance: 12 Ohms With voltage feedback Isolation: 3000V rms Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels:4 Open Collector to 30V Output Load: sink 30mA max Power Dissipation: 30mW Display LED 4 1/2 digit LED display ( I-7016PD) Communication Interface RS-485 Power Supply Input Voltage Range : +10~+30Vdc Power Consumption : 2.4W for I-7016P 3.0W for I-7016PD
